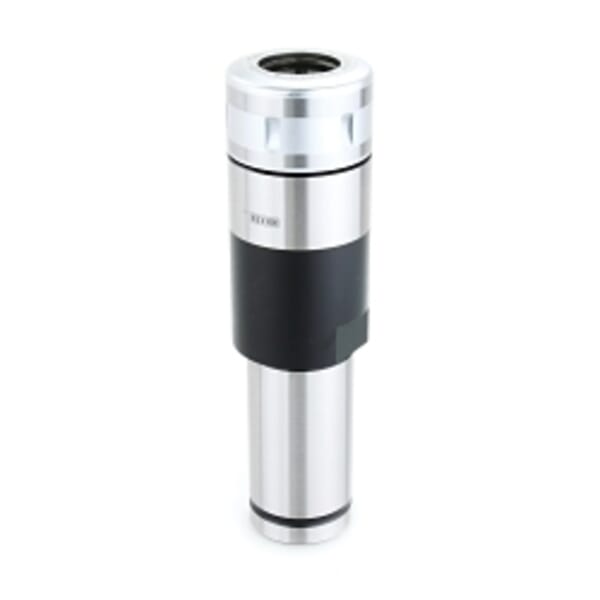

Lyndex-Nikken K3/4-SK10-100 Slim Collet Chuck, 3/4 in Dia Straight Shank, SK10 Collet System, SK10 Chuck

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Lyndex-Nikken

Lyndex-Nikken K3/4-SK10-100 Slim Collet Chuck, 3/4 in Dia Straight Shank, SK10 Collet System, SK10 Chuck

ManufacturerLyndex-Nikken

Part #048328057

MFG #K3/4-SK10-100

Lyndex-Nikken Collet Chuck, Slim, 1.083 in Nose Dia, 100 mm Head Length/Projection, SK10 Collet System, 3/4 in Shank Dia, Straight Shank, SK10 Chuck, 1.083 in Collet Nut Dia, Yes Through Coolant (Yes/No)

$238.80

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Lyndex-Nikken

Chuck Size: SK10

Collet Nut Diameter: 1.083 in

Collet System: SK10

Country of Origin: JP

Head Length/Projection: 100 mm

Manufacturer Name: Lyndex-Nikken

Nose Diameter: 1.083 in

Shank Diameter: 3/4 in

Shank Type: Straight

Through Coolant (Yes/No): Yes

Type: Slim

Feature TiN bearing nut which considerably improves cutting rigidity and finish
Narrow body allows access to tight spaces and hard to reach areas
Unique high pressure coolant collet system for higher accuracy and gripping torque
8 deg taper SK collet provides twice more clamping force and precision than ER collet chucks

Lyndex-Nikken Collet Chuck, Slim, 1.083 in Nose Dia, 100 mm Head Length/Projection, SK10 Collet System, 3/4 in Shank Dia, Straight Shank, SK10 Chuck, 1.083 in Collet Nut Dia, Yes Through Coolant (Yes/No)

Catalog

Specification Sheet

Manufacturer Name: Lyndex-Nikken

Chuck Size: SK10

Collet Nut Diameter: 1.083 in

Collet System: SK10

Country of Origin: JP

Head Length/Projection: 100 mm

Manufacturer Name: Lyndex-Nikken

Nose Diameter: 1.083 in

Shank Diameter: 3/4 in

Shank Type: Straight

Through Coolant (Yes/No): Yes

Type: Slim

Feature TiN bearing nut which considerably improves cutting rigidity and finish
Narrow body allows access to tight spaces and hard to reach areas
Unique high pressure coolant collet system for higher accuracy and gripping torque
8 deg taper SK collet provides twice more clamping force and precision than ER collet chucks

Lyndex-Nikken Collet Chuck, Slim, 1.083 in Nose Dia, 100 mm Head Length/Projection, SK10 Collet System, 3/4 in Shank Dia, Straight Shank, SK10 Chuck, 1.083 in Collet Nut Dia, Yes Through Coolant (Yes/No)
