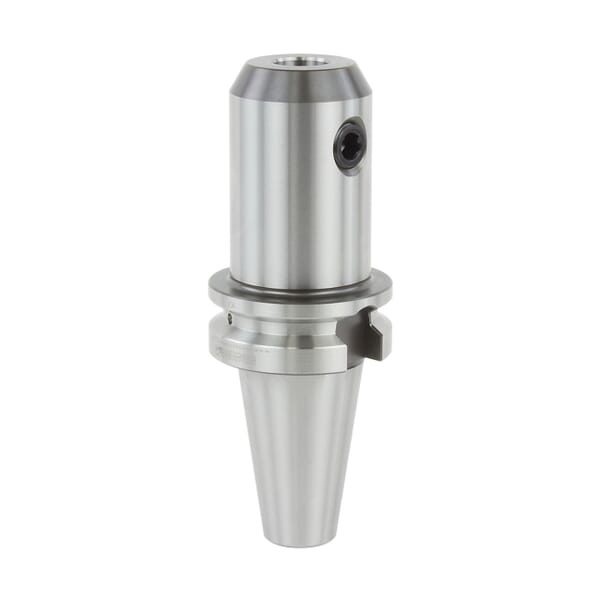

Name: Lyndex-Nikken B4006-0625-2.50 Imperial Standard End Mill Holder, 5/8 in Dia Hole, BT Taper Shank, BT40 Taper, 1.65 in Dia Nose, 2-1/2 in Projection
Brand: Lyndex-Nikken
SKU: LYNDEX_Q1_2019_01042
Availability: OutOfStock

Lyndex-Nikken

Lyndex-Nikken B4006-0625-2.50 Imperial Standard End Mill Holder, 5/8 in Dia Hole, BT Taper Shank, BT40 Taper, 1.65 in Dia Nose, 2-1/2 in Projection

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Lyndex-Nikken

Lyndex-Nikken B4006-0625-2.50 Imperial Standard End Mill Holder, 5/8 in Dia Hole, BT Taper Shank, BT40 Taper, 1.65 in Dia Nose, 2-1/2 in Projection

ManufacturerLyndex-Nikken

Part #048326346

MFG #B4006-0625-2.50

Lyndex-Nikken End Mill Holder, Imperial Standard, 5/8 in Hole Dia, BT Taper Shank, BT40 Taper, 1.65 in Nose Dia, 2-1/2 in Projection, BT40 Shank Connection, System Size Machine Side: BT40

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Lyndex-Nikken

Country of Origin: JP

Hole Diameter: 5/8 in

Manufacturer Name: Lyndex-Nikken

Nose Diameter: 1.65 in

Projection: 2-1/2 in

Series: B4006

Shank Connection Size: BT40

Shank Type: BT Taper

System Size Machine Side: BT40

Taper Size: BT40

Type: Imperial Standard

S9/16-18X1/2 Set Screw

Dual support screws to secure depth adjustment screw and side lock screw
Tapped fine 2B internal threads for precision adjustment
Balanced for high speed machining up to 20000 rpm
Made from high quality 4340 nickel chrome
End mill holder must be used with 5 deg whistle notch cutter
End mill inner bore TIR Less than 0.0002 in
Through spindle coolant capability
AT3 or better taper
Quick and easy set-up

S9/16-18X1/2 Set Screw

Drilling, Milling, Reaming, Tapping and Metal Working

Specification Sheet

Manufacturer Name: Lyndex-Nikken

Country of Origin: JP

Hole Diameter: 5/8 in

Manufacturer Name: Lyndex-Nikken

Nose Diameter: 1.65 in

Projection: 2-1/2 in

Series: B4006

Shank Connection Size: BT40

Shank Type: BT Taper

System Size Machine Side: BT40

Taper Size: BT40

Type: Imperial Standard

S9/16-18X1/2 Set Screw

Dual support screws to secure depth adjustment screw and side lock screw
Tapped fine 2B internal threads for precision adjustment
Balanced for high speed machining up to 20000 rpm
Made from high quality 4340 nickel chrome
End mill holder must be used with 5 deg whistle notch cutter
End mill inner bore TIR Less than 0.0002 in
Through spindle coolant capability
AT3 or better taper
Quick and easy set-up

S9/16-18X1/2 Set Screw

Drilling, Milling, Reaming, Tapping and Metal Working

Specification Sheet
