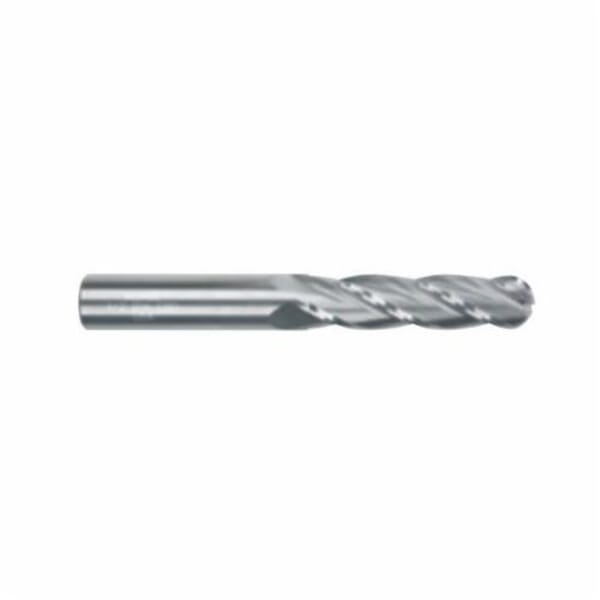

MORSE 91192 5957T Ball Nose Center Cutting Long Length Single End End Mill, 1/4 in Dia Cutter, 1-1/8 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 3 in OAL, TiALN Coated

ManufacturerMORSE

Part #044491192

MFG #91192

UPC #686125911928

MORSE End Mill, Ball Nose Center Cutting Long Length Single End, Series: 5957T, 1/4 in Diameter Cutter, 3 in Overall Length, 1-1/8 in Length of Cut, 4 Flutes, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, Solid Micrograin Carbide, TiALN Coated

$35.55

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Morse Cutting Tools

Country of Origin: US

Cutter Diameter: 1/4 in

Cutting Direction: Right Hand

Finish: TiAlN Coated

Helix Angle: 30 deg

Length of Cut: 1-1/8 in

Manufacturer Name: Morse Cutting Tools

Material: Solid Micrograin Carbide

Number of Flutes: 4

Overall Length: 3 in

Series: 5957T

Shank Diameter: 1/4 in

Shank Type: Plain/Round

Type: Ball Nose Center Cutting Long Length Single End

4 flute end mills with a greater core thickness offer increased tool strength and reduced tool deflection
4 flutes also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
Ball nose end mills are designed for milling die cavities, fillets, round bottom holes and radius bottom slots
Center cutting end allows for plunge cutting like a drill into solid materia

Plunge Cutting and Slotting

ISO 9001:2008

Catalog

Manufacturer Name: Morse Cutting Tools

Country of Origin: US

Cutter Diameter: 1/4 in

Cutting Direction: Right Hand

Finish: TiAlN Coated

Helix Angle: 30 deg

Length of Cut: 1-1/8 in

Manufacturer Name: Morse Cutting Tools

Material: Solid Micrograin Carbide

Number of Flutes: 4

Overall Length: 3 in

Series: 5957T

Shank Diameter: 1/4 in

Shank Type: Plain/Round

Type: Ball Nose Center Cutting Long Length Single End

4 flute end mills with a greater core thickness offer increased tool strength and reduced tool deflection
4 flutes also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
Ball nose end mills are designed for milling die cavities, fillets, round bottom holes and radius bottom slots
Center cutting end allows for plunge cutting like a drill into solid materia

Plunge Cutting and Slotting

ISO 9001:2008

Catalog
