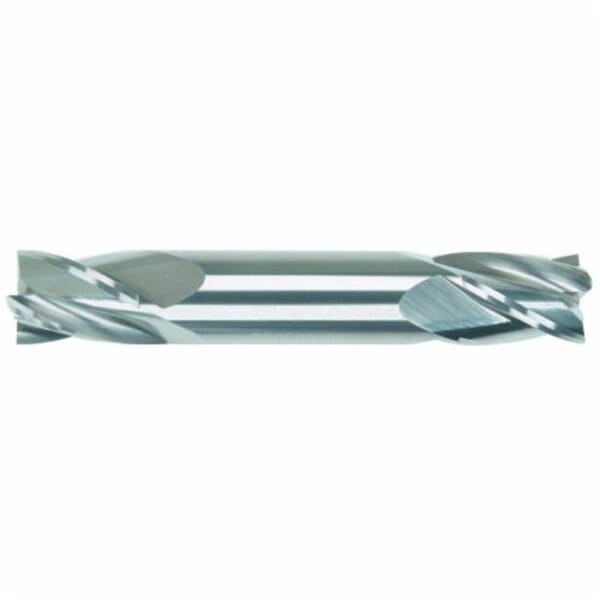

MORSE 91010 5946G Center Cutting Double End Stub Length End Mill, 1/2 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3 in OAL, TiN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Morse Cutting Tools

MORSE 91010 5946G Center Cutting Double End Stub Length End Mill, 1/2 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3 in OAL, TiN Coated

ManufacturerMORSE

Part #044491010

MFG #91010

UPC #686125910105

MORSE End Mill, Center Cutting Double End Stub Length, Series: 5946G, 1/2 in Cutter Dia, 3 in Overall Length, 5/8 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Plain/Round Shank, Solid Micrograin Carbide, TiN Coated

$70.45

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Morse Cutting Tools

Country of Origin: US

Cutter Diameter: 1/2 in

Cutting Direction: Right Hand

Finish: TiN Coated

Flute Type: Spiral

Helix Angle: 30 deg

Length of Cut: 5/8 in

Manufacturer Name: Morse Cutting Tools

Material: Solid Micrograin Carbide

Number of Flutes: 4

Overall Length: 3 in

Series: 5946G

Shank Diameter: 1/2 in

Shank Type: Plain/Round

Type: Center Cutting Double End Stub Length

4 flute end mills with a greater core thickness offer increased tool strength and reduced tool defection also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
Recommended for easy-to-machine materials including low alloy steels, non-ferrous materials and cast iron
Center cutting end allows for plunge cutting like a drill into solid material
Solid carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance & heat resistance & long tool life
Titanium nitride is an excellent coating for machining a wide variety of materials at greatly increased speeds and feeds

Plunge Cutting and Slotting

ISO 9001:2008

Manufacturer Name: Morse Cutting Tools

Country of Origin: US

Cutter Diameter: 1/2 in

Cutting Direction: Right Hand

Finish: TiN Coated

Flute Type: Spiral

Helix Angle: 30 deg

Length of Cut: 5/8 in

Manufacturer Name: Morse Cutting Tools

Material: Solid Micrograin Carbide

Number of Flutes: 4

Overall Length: 3 in

Series: 5946G

Shank Diameter: 1/2 in

Shank Type: Plain/Round

Type: Center Cutting Double End Stub Length

4 flute end mills with a greater core thickness offer increased tool strength and reduced tool defection also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
Recommended for easy-to-machine materials including low alloy steels, non-ferrous materials and cast iron
Center cutting end allows for plunge cutting like a drill into solid material
Solid carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance & heat resistance & long tool life
Titanium nitride is an excellent coating for machining a wide variety of materials at greatly increased speeds and feeds

Plunge Cutting and Slotting

ISO 9001:2008
