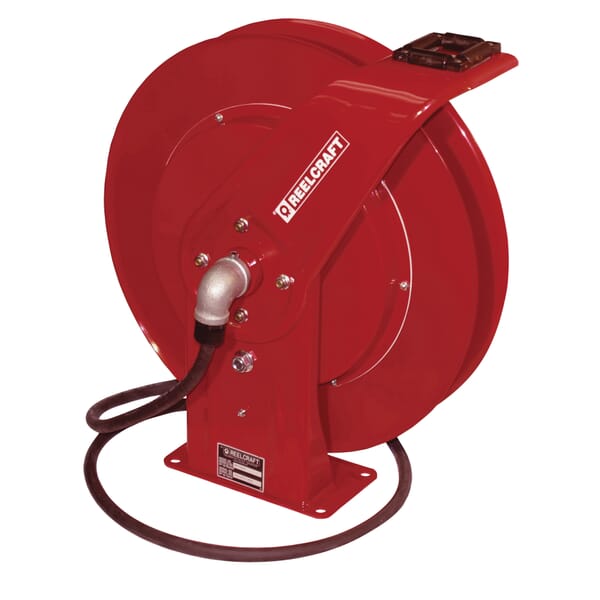

Reelcraft 4625 OLP 4000 Low Pressure Premium Duty Hose Reel With Hose, 3/8 in ID X 3/5 in OD x 25 ft L Hose, 300 psi Pressure, 12-3/8 in Dia x 2-1/2 in W Reel, Domestic

ManufacturerReelcraft

Part #022104625

MFG #4625 OLP

UPC #699567000143

Reelcraft Hose Reel, Low Pressure Premium Duty, Series: 4000, 3/8 in ID X 3/5 in OD x 25 ft L Hose, 300 psi Pressure, 12-3/8 in Reel Diameter, 2-1/2 in Reel Width, Retractable Spring Drive, Ceiling/Floor/Wall Mounting, Steel/Zinc Dichromate Swivel, Buna-N Seal, 12-7/8 in H x 12-3/8 in W x 5-5/8 in D, Reinforced Stainless Steel, Powder Coated, Red, Domestic

$383.21

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Reelcraft Industries

Color: Red

Country of Origin: US

Dimensions: 12-7/8 in H x 12-3/8 in W x 5-5/8 in D

Domestic/Import: Domestic

Drive Type: Retractable Spring

Finish: Powder Coated

Hose Capacity: 3/8 in ID X 3/5 in OD x 25 ft L

Manufacturer Name: Reelcraft Industries

Material: Reinforced Stainless Steel

Mounting Type: Ceiling/Floor/Wall

Pressure Rating: 300 psi

Reel Diameter: 12-3/8 in

Reel Width: 2-1/2 in

Seal Type: Buna-N

Series: 4000

Swivel Material: Steel/Zinc Dichromate

Type: Low Pressure Premium Duty

Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
All steel components are powder coated for maximum corrosion resistance
Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
Quiet speed latch - the latch cam is designed for reliable quiet operation
1/4 in MNPT hose outlet
3/8 in FNPT reel inlet
150 deg F maximum temperature rating

Air and Water Applications

PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Catalog

Owners/User Manual

Video Link

Manufacturer Name: Reelcraft Industries

Color: Red

Country of Origin: US

Dimensions: 12-7/8 in H x 12-3/8 in W x 5-5/8 in D

Domestic/Import: Domestic

Drive Type: Retractable Spring

Finish: Powder Coated

Hose Capacity: 3/8 in ID X 3/5 in OD x 25 ft L

Manufacturer Name: Reelcraft Industries

Material: Reinforced Stainless Steel

Mounting Type: Ceiling/Floor/Wall

Pressure Rating: 300 psi

Reel Diameter: 12-3/8 in

Reel Width: 2-1/2 in

Seal Type: Buna-N

Series: 4000

Swivel Material: Steel/Zinc Dichromate

Type: Low Pressure Premium Duty

Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
All steel components are powder coated for maximum corrosion resistance
Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
Quiet speed latch - the latch cam is designed for reliable quiet operation
1/4 in MNPT hose outlet
3/8 in FNPT reel inlet
150 deg F maximum temperature rating

Air and Water Applications

PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Catalog

Owners/User Manual

Video Link
