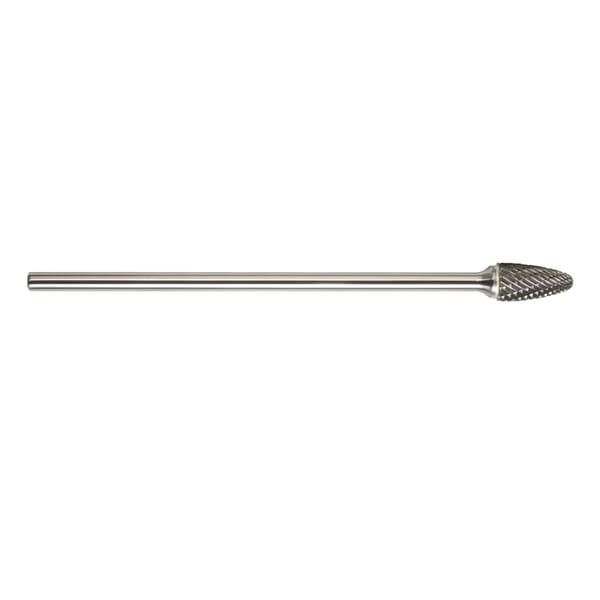

Magnum 7FX124DC 7000FX Extra Long Shank Carbide Burr, Radius End, Tree Head, 3/8 in Dia Head, 3/4 in L of Cut, Double Cut

ManufacturerMagnum

Part #001371246

MFG #7FX124DC

UPC #045997296227

Magnum Carbide Burr, Extra Long Shank, Series: 7000FX, Radius, 3/8 in Head Dia, 3/4 in Length of Cut, Tree Head Shape, Double Cut Type, 1/4 in Shank Dia, 6 in Shank Length, Solid Carbide Head, 40000 rpm Maximum, Applicable Materials: Aluminum, Brass, Cast Iron, Copper, Magnesium Plastics, Steel and Stainless Steel, SF-3L6 Industry Specification

$23.76

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Walter Surface Technologies

Country of Origin: US

Cut Type: Double, Double Cut

End Type: Radius

Head Diameter: 3/8 in

Head Material: Solid Carbide

Head Shape: Tree, Tree Radius (Shape SF)

Industry Specification: SF-3L6

Length of Cut: 3/4 in

Manufacturer Name: Walter Surface Technologies

Maximum Speed: 40000 rpm

Series: 7000FX

Shank Diameter: 1/4 in

Shank Length: 6 in

Type: Extra Long Shank

PROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Drillcos double cut, with its chisel type cutting edge, is a machine ground tool built to exacting tolerances of concentricity, size and shape
This accuracy, when combined with precision grinders, results in smooth running, fast metal removal and fine finishes
The right and left hand helical flutes combine to produce a chisel type cutting tooth
The double cut design also produces an easy to handle granular type chip, in most metals, as opposed to the conventional sliver type chips
Throughout its life, the double cut gives faster stock removal, less operator fatigue, and maintains a good finish on the widest possible variety of materials
6 in long shank for difficult to reach areas
Double cut tooth design for aggressive material removal
optimal flute geometry for fast removal and fine finish
Brazed shank for perfect concentricity and reduced vibrations

Drillco solid carbide burrs are extremely versatile. Manufactured from premium grade tungsten carbide. Burrs are available in standard lengths (single and double cut), 6" long series, and in miniature sizes (for use in pencil grinders).
