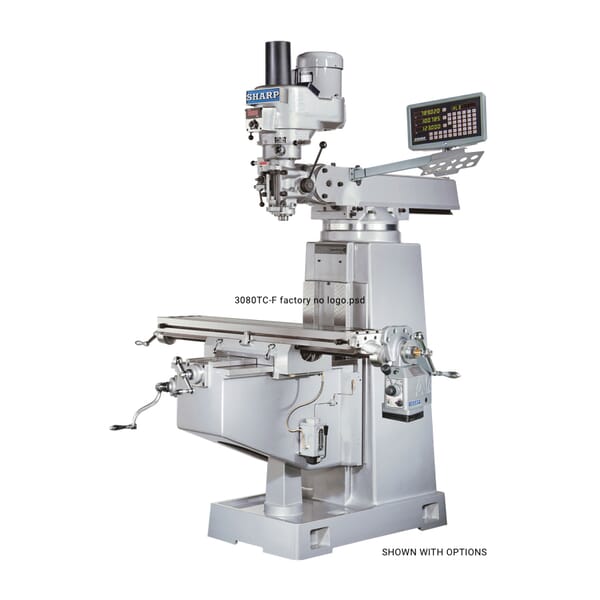

Sharp-Industries, Inc | Sharp TMV-DVS Knee Type Manual Vertical Milling Machine With Digital Variable Speed Head, 3 hp, 220/440 V, 10 in L x 54 in W Table, 39 in Longitudinal Travel, NST #40 Spindle

Sharp TMV-DVS Knee Type Manual Vertical Milling Machine With Digital Variable Speed Head, 3 hp, 220/440 V, 10 in L x 54 in W Table, 39 in Longitudinal Travel, NST #40 Spindle

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sharp-Industries, Inc

Sharp TMV-DVS Knee Type Manual Vertical Milling Machine With Digital Variable Speed Head, 3 hp, 220/440 V, 10 in L x 54 in W Table, 39 in Longitudinal Travel, NST #40 Spindle

ManufacturerSharp

Part #848670084

MFG #TMV-DVS

Sharp Milling Machine, Knee Type Manual Vertical, 10 in L x 54 in W Table, 39 in Longitudinal Travel, 16.3 in Cross Travel, 15.3 in Knee Travel, 18-1/2 in Ram Travel, 60 to 4500 rpm Spindle Speed, 3 Spindle Speed, NST #40 Spindle Taper, 5 in Quill Diameter, 1.6 to 16.9 in Spindle to Table Distance, 3 T-Slots, 5/8 in W x 2-1/2 in Pitch T-Slot, 45/90 deg Tilting Angle, 3 hp, 220/440 V, 8/4 A, 5.83 x 6.25 x 7.64 ft Dimensions

$18,130.00

/ EA

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 8/4 A

Country of Origin: TW

Cross Travel: 16.3 in

Dimensions: 5.83 x 6.25 x 7.64 ft

Horsepower: 3 hp

Knee Travel: 15.3 in

Longitudinal Travel: 39 in

Manufacturer Name: Sharp-Industries, Inc

Number of Spindle Speeds: 3

Number of T-Slots: 3

Quill Diameter: 5 in

Ram Travel: 18-1/2 in

Spindle Speed: 60 to 4500 rpm

Spindle Taper: NST #40

Spindle to Table Distance: 1.6 to 16.9 in

Table Size: 10 in L x 54 in W

Tilting Angle: 45/90 deg

T-Slot Size: 5/8 in W x 2-1/2 in Pitch

Type: Knee Type Manual Vertical

Voltage Rating: 220/440 V

Hardened and ground ways
TURCITE coated ways
Self-lubricating motor shaft
Meehanite castings
precision ground gibes
Roller bearing support at bottom of motor shaft
Superior knuckle head design to prevent vertical head from slipping
Variable speed drive (60 to 4500 rpm)
Hardened and ground box ways on column and saddle
ABEC-7 super precision spindle bearings
Unique double nut backlash system

Adjustable Mechanical Material Stop, Bi-Metal Saw Blade, Coolant System, Tools Leveling Pads and Additional Wire Brush

Catalog

Owners/User Manual

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 8/4 A

Country of Origin: TW

Cross Travel: 16.3 in

Dimensions: 5.83 x 6.25 x 7.64 ft

Horsepower: 3 hp

Knee Travel: 15.3 in

Longitudinal Travel: 39 in

Manufacturer Name: Sharp-Industries, Inc

Number of Spindle Speeds: 3

Number of T-Slots: 3

Quill Diameter: 5 in

Ram Travel: 18-1/2 in

Spindle Speed: 60 to 4500 rpm

Spindle Taper: NST #40

Spindle to Table Distance: 1.6 to 16.9 in

Table Size: 10 in L x 54 in W

Tilting Angle: 45/90 deg

T-Slot Size: 5/8 in W x 2-1/2 in Pitch

Type: Knee Type Manual Vertical

Voltage Rating: 220/440 V

Hardened and ground ways
TURCITE coated ways
Self-lubricating motor shaft
Meehanite castings
precision ground gibes
Roller bearing support at bottom of motor shaft
Superior knuckle head design to prevent vertical head from slipping
Variable speed drive (60 to 4500 rpm)
Hardened and ground box ways on column and saddle
ABEC-7 super precision spindle bearings
Unique double nut backlash system

Adjustable Mechanical Material Stop, Bi-Metal Saw Blade, Coolant System, Tools Leveling Pads and Additional Wire Brush

Catalog

Owners/User Manual
