Seco Tools | Seco 10008198 Side Lock Holder, 1/2 in Dia Adapter/Shank, Taper/Weldon Shank, CAT40 Modular Connection, CAT40 Taper, 5.307 in OAL

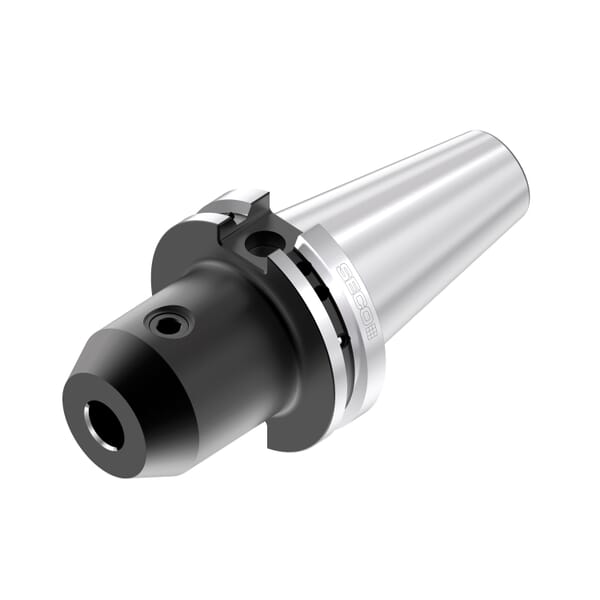

Seco 10008198 Side Lock Holder, 1/2 in Dia Adapter/Shank, Taper/Weldon Shank, CAT40 Modular Connection, CAT40 Taper, 5.307 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 10008198 Side Lock Holder, 1/2 in Dia Adapter/Shank, Taper/Weldon Shank, CAT40 Modular Connection, CAT40 Taper, 5.307 in OAL

ManufacturerSeco

Part #288508198

MFG #10008198

Seco Side Lock Holder, CAT40 Modular Connection, 1/2 in Diameter Adapter/Shank, 2.727 in Shank Length, Taper/Weldon Shank, CAT40 Taper, 1.594 in Body Diameter Workpiece Side, 5.307 in Overall Length, ANSI Code: CAT40TFADB-EM0.500-2.620, ISO Code: CAT40TFADB-EM0.500-2.620, System Size Machine Side: CAT40 TF ADB, Through Coolant: Yes

$247.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
Adapter/Shank Diameter: 1/2 in
ANSI Code: CAT40TFADB-EM0.500-2.620
Body Diameter Workpiece Side: 1.594 in
Country of Origin: FR
ISO Code: CAT40TFADB-EM0.500-2.620
Manufacturer Name: Seco Tools
Modular Connection Size: CAT40
Overall Length: 5.307 in
Shank Length: 2.727 in
Shank Type: Taper/Weldon
System Size Machine Side: CAT40 TF ADB
Taper Size: CAT40
Through Coolant (Yes/No): Yes
: Seco Side Lock Holder for Weldon shanks are simple to use and provide safe and strong clamping with a strong anti-pulling action. The EPB 584 type has a fixed tool position as a result of the tool shank flats and cannot be adjusted. The locking method offers high torque transmission. Additionally, EPB 5842 has a short design, giving maximum rigidity. Direct run-out of the bore to the external taper is 5 um. Reduced bore tolerances are 1 to 5 um on 6 to 18 mm Dia and 1 to 7 um on 20 mm Dia.

: Manufacturer Name: Seco Tools
Adapter/Shank Diameter: 1/2 in
ANSI Code: CAT40TFADB-EM0.500-2.620
Body Diameter Workpiece Side: 1.594 in
Country of Origin: FR
ISO Code: CAT40TFADB-EM0.500-2.620
Manufacturer Name: Seco Tools
Modular Connection Size: CAT40
Overall Length: 5.307 in
Shank Length: 2.727 in
Shank Type: Taper/Weldon
System Size Machine Side: CAT40 TF ADB
Taper Size: CAT40
Through Coolant (Yes/No): Yes
: Seco Side Lock Holder for Weldon shanks are simple to use and provide safe and strong clamping with a strong anti-pulling action. The EPB 584 type has a fixed tool position as a result of the tool shank flats and cannot be adjusted. The locking method offers high torque transmission. Additionally, EPB 5842 has a short design, giving maximum rigidity. Direct run-out of the bore to the external taper is 5 um. Reduced bore tolerances are 1 to 5 um on 6 to 18 mm Dia and 1 to 7 um on 20 mm Dia.
