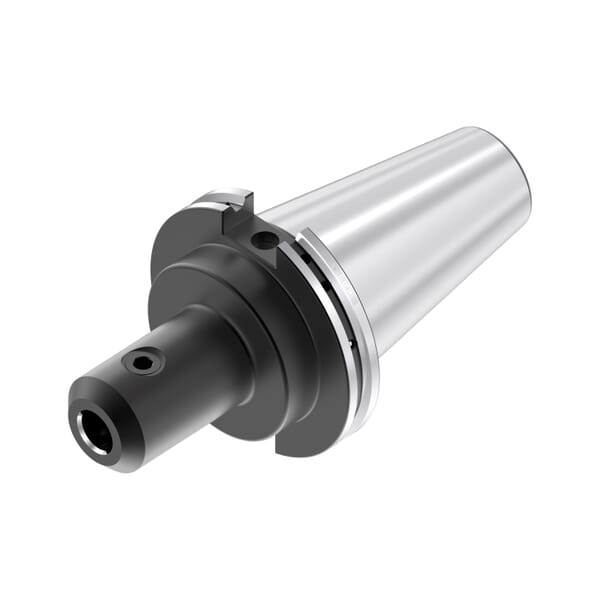

Seco Tools | Seco 10008192 Side Lock Holder, 12 mm Dia Adapter/Shank, Taper/Weldon Shank, CAT50 Modular Connection, CAT50 Taper, 168.15 mm OAL

Seco 10008192 Side Lock Holder, 12 mm Dia Adapter/Shank, Taper/Weldon Shank, CAT50 Modular Connection, CAT50 Taper, 168.15 mm OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 10008192 Side Lock Holder, 12 mm Dia Adapter/Shank, Taper/Weldon Shank, CAT50 Modular Connection, CAT50 Taper, 168.15 mm OAL

ManufacturerSeco

Part #288508192

MFG #10008192

Seco Side Lock Holder, CAT50 Modular Connection, 12 mm Diameter Adapter/Shank, 101.601 mm Shank Length, Taper/Weldon Shank, CAT50 Taper, 42 mm Body Diameter Workpiece Side, 168.15 mm Overall Length, ANSI Code: CAT50ADB-EM12-2.620, ISO Code: CAT50ADB-EM12-2.620, System Size Machine Side: CAT50 ADB, Through Coolant: Yes

$154.17

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
Adapter/Shank Diameter: 12 mm
ANSI Code: CAT50ADB-EM12-2.620
Body Diameter Workpiece Side: 42 mm
Country of Origin: SI
ISO Code: CAT50ADB-EM12-2.620
Manufacturer Name: Seco Tools
Modular Connection Size: CAT50
Overall Length: 168.15 mm
Shank Length: 101.601 mm
Shank Type: Taper/Weldon
System Size Machine Side: CAT50 ADB
Taper Size: CAT50
Through Coolant (Yes/No): Yes
: Seco Side Lock Holder for Weldon shanks are simple to use and provide safe and strong clamping with a strong anti-pulling action. The EPB 584 type has a fixed tool position as a result of the tool shank flats and cannot be adjusted. The locking method offers high torque transmission. Additionally, EPB 5842 has a short design, giving maximum rigidity. Direct run-out of the bore to the external taper is 5 um. Reduced bore tolerances are 1 to 5 um on 6 to 18 mm Dia and 1 to 7 um on 20 mm Dia.

: Manufacturer Name: Seco Tools
Adapter/Shank Diameter: 12 mm
ANSI Code: CAT50ADB-EM12-2.620
Body Diameter Workpiece Side: 42 mm
Country of Origin: SI
ISO Code: CAT50ADB-EM12-2.620
Manufacturer Name: Seco Tools
Modular Connection Size: CAT50
Overall Length: 168.15 mm
Shank Length: 101.601 mm
Shank Type: Taper/Weldon
System Size Machine Side: CAT50 ADB
Taper Size: CAT50
Through Coolant (Yes/No): Yes
: Seco Side Lock Holder for Weldon shanks are simple to use and provide safe and strong clamping with a strong anti-pulling action. The EPB 584 type has a fixed tool position as a result of the tool shank flats and cannot be adjusted. The locking method offers high torque transmission. Additionally, EPB 5842 has a short design, giving maximum rigidity. Direct run-out of the bore to the external taper is 5 um. Reduced bore tolerances are 1 to 5 um on 6 to 18 mm Dia and 1 to 7 um on 20 mm Dia.
