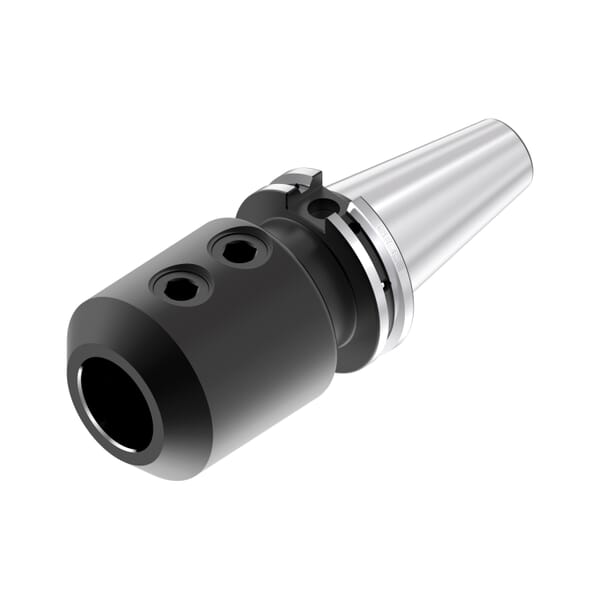

Seco 10008190 Side Lock Holder, 25 mm Dia Adapter/Shank, Taper/Weldon Shank, CAT40 Modular Connection, CAT40 Taper, 169.85 mm OAL

ManufacturerSeco

Part #288508190

MFG #10008190

Seco Side Lock Holder, CAT40 Modular Connection, 25 mm Diameter Adapter/Shank, 68.25 mm Shank Length, Taper/Weldon Shank, CAT40 Taper, 65 mm Body Diameter Workpiece Side, 169.85 mm Overall Length, ANSI Code: CAT40ADB-EM25-4.000, ISO Code: CAT40ADB-EM25-4.000, System Size Machine Side: CAT40 ADB, Through Coolant: Yes

$160.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
Adapter/Shank Diameter: 25 mm
ANSI Code: CAT40ADB-EM25-4.000
Body Diameter Workpiece Side: 65 mm
Country of Origin: SI
ISO Code: CAT40ADB-EM25-4.000
Manufacturer Name: Seco Tools
Modular Connection Size: CAT40
Overall Length: 169.85 mm
Shank Length: 68.25 mm
Shank Type: Taper/Weldon
System Size Machine Side: CAT40 ADB
Taper Size: CAT40
Through Coolant (Yes/No): Yes
: Seco Side Lock Holder for Weldon shanks are simple to use and provide safe and strong clamping with a strong anti-pulling action. The EPB 584 type has a fixed tool position as a result of the tool shank flats and cannot be adjusted. The locking method offers high torque transmission. Additionally, EPB 5842 has a short design, giving maximum rigidity. Direct run-out of the bore to the external taper is 5 um. Reduced bore tolerances are 1 to 5 um on 6 to 18 mm Dia and 1 to 7 um on 20 mm Dia.
