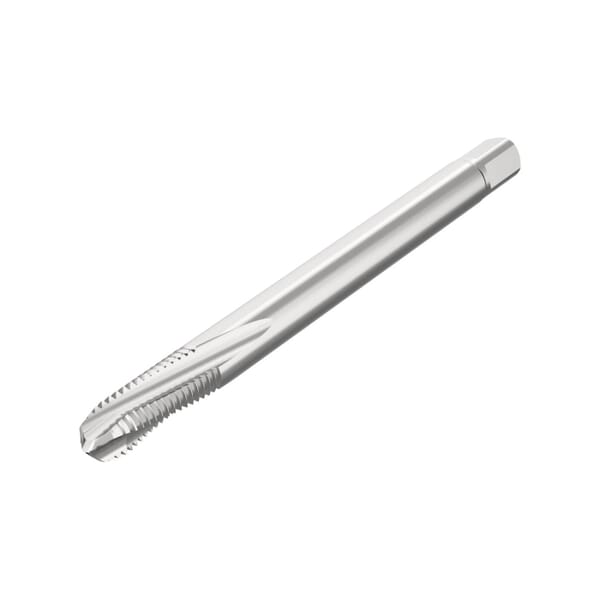

Seco Tools | Seco Threadmaster 10001102 Helix Blind Hole Spiral Flute Tap, 1/4-28 STIUNF Thread, 3 Flutes, 3B Class of Fit, Modified Bottoming Chamfer

Seco Threadmaster 10001102 Helix Blind Hole Spiral Flute Tap, 1/4-28 STIUNF Thread, 3 Flutes, 3B Class of Fit, Modified Bottoming Chamfer

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco Threadmaster 10001102 Helix Blind Hole Spiral Flute Tap, 1/4-28 STIUNF Thread, 3 Flutes, 3B Class of Fit, Modified Bottoming Chamfer

ManufacturerSeco

Part #288501102

MFG #10001102

Seco Threadmaster Spiral Flute Tap, Helix Blind Hole, Measurement System: Imperial, 1/4-28 Thread, STIUNF Thread, 0.709 in Thread Length, 3.543 in Overall Length, 3 Flutes, Modified Bottoming Chamfer, Class of Fit: 3B, 0.315 in Shank Diameter, 0.26 in Tap Drill, HSS-E-PM, Uncoated

$97.50

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
Chamfer Type: Modified Bottoming
Class of Fit: 3B
Country of Origin: DE
Finish/Coating: Uncoated
Manufacturer Name: Seco Tools
Material: HSS-E-PM
Measurement System: Imperial
Number of Flutes: 3
Overall Length: 3.543 in
Shank Diameter: 0.315 in
Tap Drill Size: 0.26 in
Thread Length: 0.709 in
Thread Size: 1/4-28
Thread Type: STIUNF
Type: Helix Blind Hole
: Secos range of 351 helix point and 73 straight threading taps for blind holes are available for general-purpose and material-specific applications. Many are available in both with and without internal coolant in both helix and straight fluted taps. Tap dimensions for general-purpose range from 3 to 64 mm and in thread profiles M, MF, UNC, UNF, G, NPT and NPTF. Material-specific (ISO P, M and N) helix taps cover 1.6 to 30 mm in thread profiles M and MF. Straight fluted (ISO-K) thread profiles cover 3 to 42 mm in thread profiles M, MF, UNC, UNF and G.
