Seco Tools | Niagara Cutter N46244 DC402 Center Cutting Double End Short Length Square End End Mill, 3/4 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 5-5/8 in OAL, Uncoated

Niagara Cutter N46244 DC402 Center Cutting Double End Short Length Square End End Mill, 3/4 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 5-5/8 in OAL, Uncoated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Niagara Cutter N46244 DC402 Center Cutting Double End Short Length Square End End Mill, 3/4 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 5-5/8 in OAL, Uncoated

ManufacturerNiagara Cutter

Part #803646244

MFG #N46244

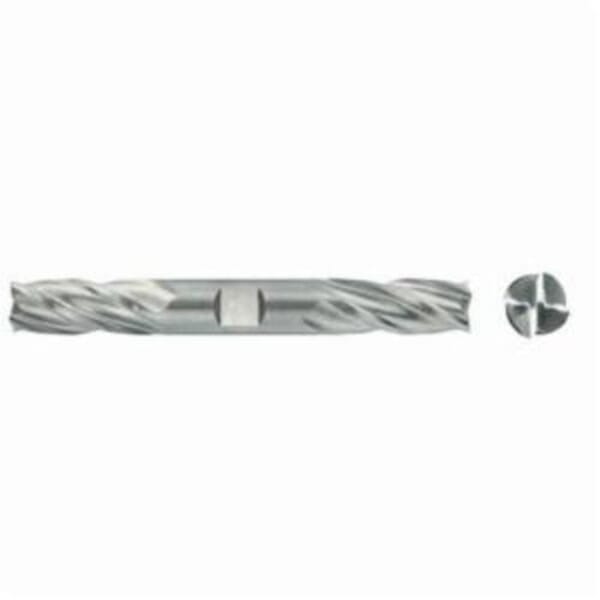

Niagara Cutter End Mill, Center Cutting Double End Short Length Square End, Series: DC402, 3/4 in Diameter Cutter, 5-5/8 in Overall Length, 1-5/8 in Length of Cut, 4 Flutes, Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: DC402-0.750-XD2-S.3-Z4, ISO Code: DC402.750XD2S.3Z4, HSS, Uncoated

$69.01

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: DC402-0.750-XD2-S.3-Z4

Cutter Diameter: 3/4 in

Cutting Direction: Right Hand

Finish: Uncoated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: DC402.750XD2S.3Z4

Length of Cut: 1-5/8 in

Material: HSS

Number of Flutes: 4

Overall Length: 5-5/8 in

Series: DC402

Shank Diameter: 3/4 in

Shank Type: Weldon Flat

Type: Center Cutting Double End Short Length Square End

High speed steel (HSS) provides good wear resistance, it is commonly used for general purpose applications on both ferrous and non-ferrous materials
Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
90 deg cutting edge
2.031 in L minimum clamping
30 deg axial rake
10 deg radial rake
Square nose end mills create sharp, unrounded cuts
Double-end end mills have cutting edges on both ends for longer tool life
Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
D - Cylindrical tool shape
