Seco JABRO H/Tornado 03127356 JH770/H/TORNADO Corner Radius High Speed Rougher Square End Mill SM

ManufacturerSeco

Part #288527356

MFG #03127356

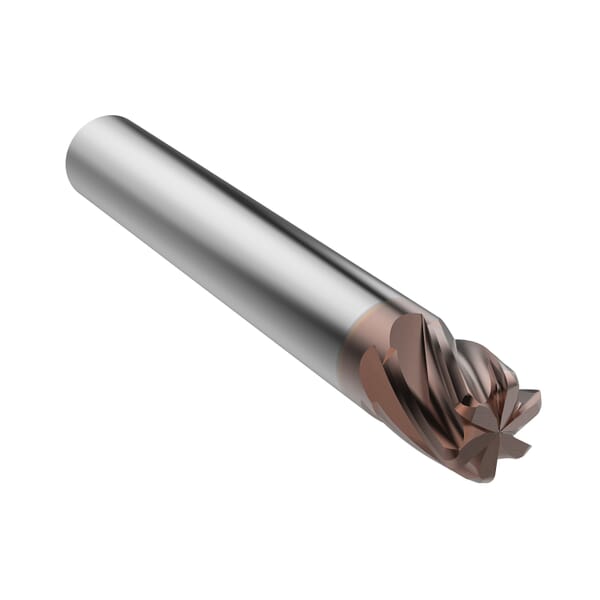

Seco JABRO HSM/Tornado End Mill, Corner Radius High Speed Rougher Square, Series: JH770/HSM/TORNADO, 8 mm Diameter Cutter, 58 mm Overall Length, 10 mm Length of Cut, 6 Flutes, Spiral/Short Flute, 8 mm Shank Diameter, Right Hand Cutting Direction, 28 deg Helix Angle, Cylindrical Shank, ANSI Code: JH770080D2R100.0Z6-HXT, ISO Code: JH770080D2R100.0Z6-HXT, Solid Carbide, PVD/Polished HXT Coated

$127.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: JH770080D2R100.0Z6-HXT

Country of Origin: NL

Cutter Diameter: 8 mm

Cutting Direction: Right Hand

Finish: PVD/Polished HXT Coated

Flute Type: Spiral/Short

Helix Angle: 28 deg

ISO Code: JH770080D2R100.0Z6-HXT

Length of Cut: 10 mm

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 6

Overall Length: 58 mm

Series: JH770/HSM/TORNADO

Shank Diameter: 8 mm

Shank Type: Cylindrical

Type: Corner Radius High Speed Rougher Square

Shorter part cycle times
Superior surface finishes
Application versatility
Process stability and consistency
Longer tool life
Reinforced core

Significantly boost knee implant machining speeds to shorten part cycle times by as much as 50% with Secos new JABRO CoCr (cobalt chrome) range of solid carbide cutting tools. The industrys first dedicated product line for knee implant machining, this new range includes 9 new advanced geometries and 39 tools, most of which are positioned in the JH Tornado high speed cutting family. These tools combine high speed and high feed machining strategies and are all designed for tibial tray and femoral knee implant parts. The range reduces, if not eliminates, your need for secondary grinding operations, also known as polishing or fine finishing. Exceptional part surface finishes and long tool life result from the tools continuous grades and optimized coatings. You can also maximize machining performance for other medical implant components such as those for hip replacements, bone plates and many others because the new dedicated tooling can be used for machining Ti6Al4V ISO-S12 (3D printed) parts as well.
