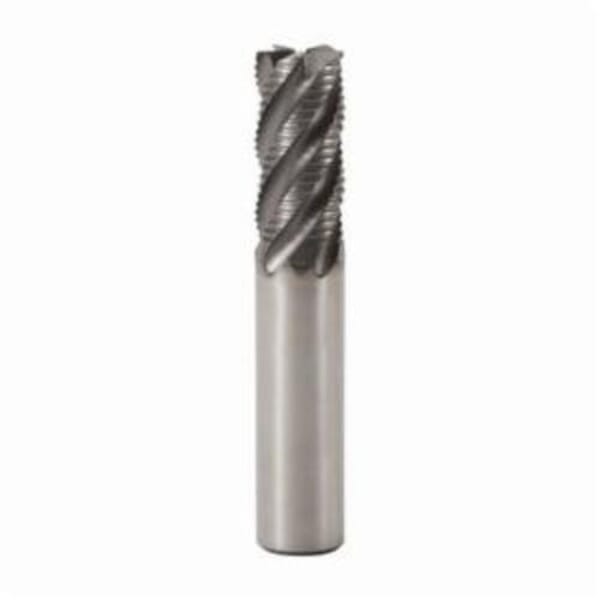

JABRO HPM 02828167 JHP993 Corner Chamfer Non-Center Cutting Regular Length Single End Roughing End Mill, 0.787 in Dia Cutter, 1.653 in Length of Cut, 5 Flutes, 0.787 in Dia Shank, 3.937 in OAL, SIRA/PVD Coated

Product Line: JABRO

MFG #: 02828167

Your Price

$569.00 / EA

Pack: 1/PK

Qty

Details

Part#288584686

Manufacturer:Seco Tools

MFG #02828167

JABRO HPM Roughing End Mill, Corner Chamfer Non-Center Cutting Regular Length Single End, Series: JHP993, 0.787 in Diameter Cutter, 3.937 in Overall Length, 1.653 in Length of Cut, 5 Flutes, Spiral Flute, 0.787 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Weldon Flat Shank, ANSI Code: JHP993200D2C.3Z5-SIRA, ISO Code: JHP993200D2C.3Z5-SIRA, Solid Carbide, SIRA/PVD Coated

Specifications

ANSI Code

JHP993200D2C.3Z5-SIRA

Country of Origin

Cutter Diameter

0.787 in

Cutting Direction

Right Hand

Finish

SIRA/PVD Coated

Flute Type

Spiral

Helix Angle

38 deg

ISO Code

JHP993200D2C.3Z5-SIRA

Length of Cut

1.653 in

Manufacturer Name

Seco Tools

Material

Solid Carbide

Number of Flutes

Overall Length

3.937 in

Series

JHP993

Shank Diameter

0.787 in

Shank Type

Weldon Flat

Type

Corner Chamfer Non-Center Cutting Regular Length Single End

Application

For radial and ramping applications

Item Features

JABRO-HPM - High performance machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Sira, also known as Siron-A, is a coatings that offers heat resistance, allows for smooth chip flows and enhances tool life, it is used on a variety of materials including steel, stainless steel and cast iron
90 deg cutting edge
0.019 in W corner chamfer
1.968 in L minimum clamping
38 deg axial rake
7 deg radial rake
D - Cylindrical tool shape
