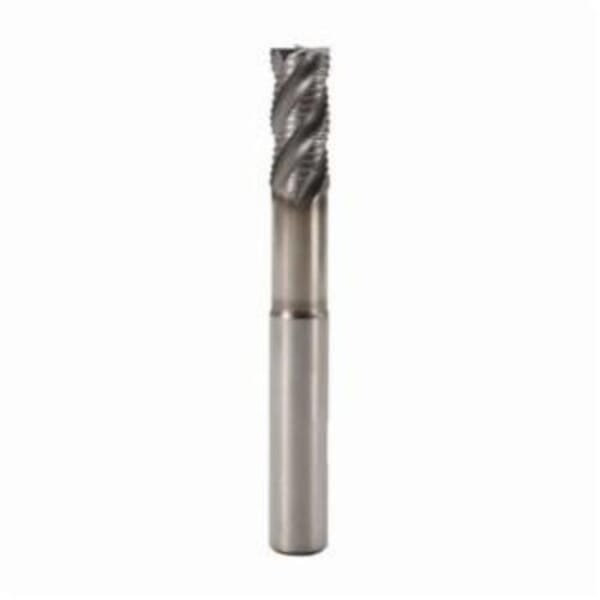

JABRO HPM 02828168 JHP993 Corner Chamfer Non-Center Cutting Regular Length Single End Roughing End Mill, 0.787 in Dia Cutter, 1.653 in Length of Cut, 5 Flutes, 0.787 in Dia Shank, 4.921 in OAL, SIRA/PVD Coated
Product Line: JABRO
MFG #: 02828168
Your Price
JABRO HPM 02828168 JHP993 Corner Chamfer Non-Center Cutting Regular Length Single End Roughing End Mill, 0.787 in Dia Cutter, 1.653 in Length of Cut, 5 Flutes, 0.787 in Dia Shank, 4.921 in OAL, SIRA/PVD Coated
Description
JABRO HPM Roughing End Mill, Corner Chamfer Non-Center Cutting Regular Length Single End, Series: JHP993, 0.787 in Diameter Cutter, 4.921 in Overall Length, 1.653 in Length of Cut, 5 Flutes, Spiral Flute, 0.787 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Weldon Flat Shank, ANSI Code: JHP993200E3C.3Z5-SIRA, ISO Code: JHP993200E3C.3Z5-SIRA, Solid Carbide, SIRA/PVD Coated
Product Number: 288584669
Manufacturer: JABRO
Prasdsadice:
MFG #: 02828168
Manufacturer: Seco Tools
Specifications
ANSI Code: JHP993200E3C.3Z5-SIRA
Country of Origin: NL
Cutter Diameter: 0.787 in
Cutting Direction: Right Hand
Finish: SIRA/PVD Coated
Flute Type: Spiral
Helix Angle: 38 deg
ISO Code: JHP993200E3C.3Z5-SIRA
Length of Cut: 1.653 in
Manufacturer Name: Seco Tools
Material: Solid Carbide
Number of Flutes: 5
Overall Length: 4.921 in
Series: JHP993
Shank Diameter: 0.787 in
Shank Type: Weldon Flat
Type: Corner Chamfer Non-Center Cutting Regular Length Single End
Item Features
- JABRO-HPM - High performance machining technology
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Sira, also known as Siron-A, is a coatings that offers heat resistance, allows for smooth chip flows and enhances tool life, it is used on a variety of materials including steel, stainless steel and cast iron
- 90 deg cutting edge
- 0.019 in W corner chamfer
- 1.968 in L minimum clamping
- 38 deg axial rake
- 7 deg radial rake
- 0.755 in Dia neck
- 2.755 in L neck
- E - Neck tool shape
