Seco Tools

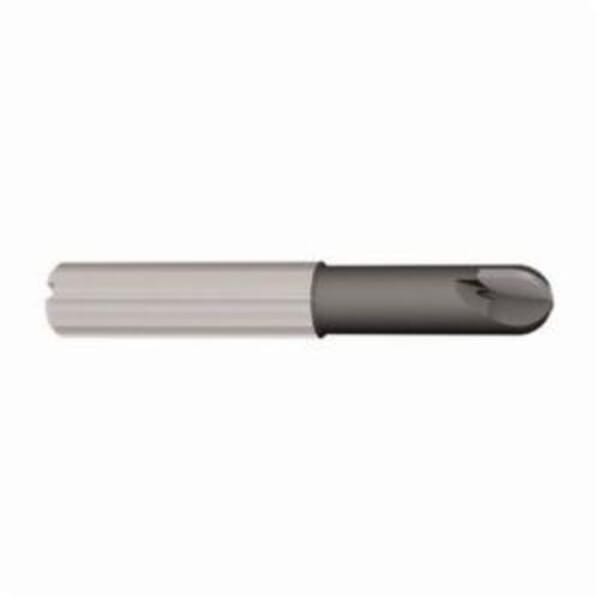

Seco JABRO Composites 02968184 JPD850 Ball End Center Cutting Single End Mill, 6 mm Dia Cutter, 7 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 58 mm OAL, PCD Coated

ManufacturerSeco

Part #288543097

MFG #02968184

Seco JABRO Composites End Mill, Ball End Center Cutting Single End, Series: JPD850, 6 mm Diameter Cutter, 58 mm Overall Length, 7 mm Length of Cut, 2 Flutes, Straight Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, Cylindrical Shank, ANSI Code: JPD850060E2B.0Z2A, ISO Code: JPD850060E2B.0Z2A, Solid Carbide, PCD Coated

$668.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: JPD850060E2B.0Z2A

Country of Origin: FR

Cutter Diameter: 6 mm

Cutting Direction: Right Hand

Finish: PCD Coated

Flute Type: Straight

ISO Code: JPD850060E2B.0Z2A

Length of Cut: 7 mm

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 58 mm

Series: JPD850

Shank Diameter: 6 mm

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End

JABRO-Composites - Composite machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Polycrystalline Diamond (PCD) tipped coatings run at high speeds and increase machine time, it is commonly used on aluminum alloys, composites and extremely difficult-to-machine materials
90 deg cutting edge
0.118 in corner radius
1.417 in L minimum clamping
0 deg axial rake
0 deg radial rake
18 mm L reach
5.4 mm Dia neck
0.708 in L neck
E - Neck tool shape
0 deg corner chamfer

Seco JABRO Composites End Mill, Ball End Center Cutting Single End, Series: JPD850, 6 mm Diameter Cutter, 58 mm Overall Length, 7 mm Length of Cut, 2 Flutes, Straight Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, Cylindrical Shank, ANSI Code: JPD850060E2B.0Z2A, ISO Code: JPD850060E2B.0Z2A, Solid Carbide, PCD Coated

Manufacturer Name: Seco Tools

ANSI Code: JPD850060E2B.0Z2A

Country of Origin: FR

Cutter Diameter: 6 mm

Cutting Direction: Right Hand

Finish: PCD Coated

Flute Type: Straight

ISO Code: JPD850060E2B.0Z2A

Length of Cut: 7 mm

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 58 mm

Series: JPD850

Shank Diameter: 6 mm

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End

JABRO-Composites - Composite machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Polycrystalline Diamond (PCD) tipped coatings run at high speeds and increase machine time, it is commonly used on aluminum alloys, composites and extremely difficult-to-machine materials
90 deg cutting edge
0.118 in corner radius
1.417 in L minimum clamping
0 deg axial rake
0 deg radial rake
18 mm L reach
5.4 mm Dia neck
0.708 in L neck
E - Neck tool shape
0 deg corner chamfer

Seco JABRO Composites End Mill, Ball End Center Cutting Single End, Series: JPD850, 6 mm Diameter Cutter, 58 mm Overall Length, 7 mm Length of Cut, 2 Flutes, Straight Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, Cylindrical Shank, ANSI Code: JPD850060E2B.0Z2A, ISO Code: JPD850060E2B.0Z2A, Solid Carbide, PCD Coated
