Seco 00012340 Seco-Capto External Multi-Directional Modular Turning Unit Head, C6 System, Left Hand Cutting, 18 mm Max Depth of Cut, 6 mm Max Width of Cut, LCGN/LCMF/LCMR Insert, 65 mm L Head/Projection, Insert Compatibility: LC..1606..

ManufacturerSeco

Part #288512340

MFG #00012340

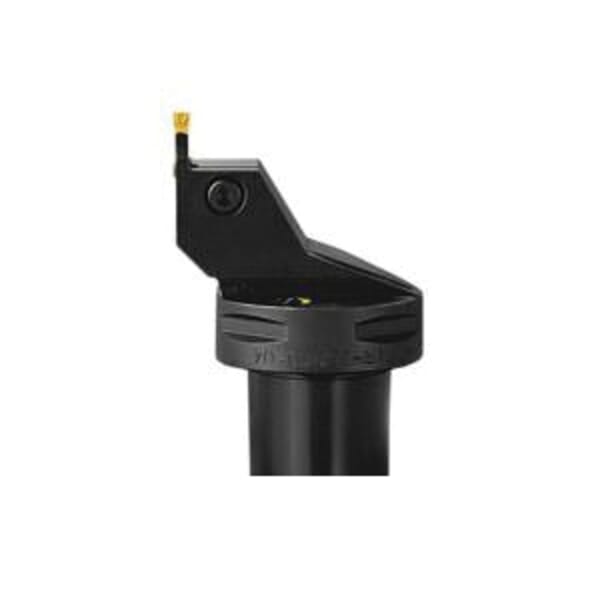

Seco Modular Turning Unit Head, External Multi-Directional, Series: Protostar AH602551, 65 mm Head Length/Projection, System Size: C6, 18 mm Maximum Depth of Cut, 6 mm Maximum Width of Cut, LCGN/LCMF/LCMR Insert, Insert Compatibility: LC..1606.., Left Hand Cutting, 45 mm Center to Cutting Edge, Secoloc Clamp Insert Holding Method

$529.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
Center to Cutting Edge: 45 mm
Country of Origin: GB, SE
Cutting Direction: Left Hand
Head Length/Projection: 65 mm
Insert Compatibility: LC..1606..
Insert Holding Method: Secoloc Clamp
Insert Style: LCGN/LCMF/LCMR
Manufacturer Name: Seco Tools
Maximum Depth of Cut: 18 mm
Maximum Width of Cut: 6 mm
Series: Seco-Capto
System Size: C6
Type: External Multi-Directional
: TCEI0815 Clamp Screw, 6SMS795 Clamp Key and CN7 Coolant Nozzle
: The Seco MDT (multi-directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off and threading. The unique Secoloc clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability.
: TCEI0815 Clamp Screw, 6SMS795 Clamp Key and CN7 Coolant Nozzle
