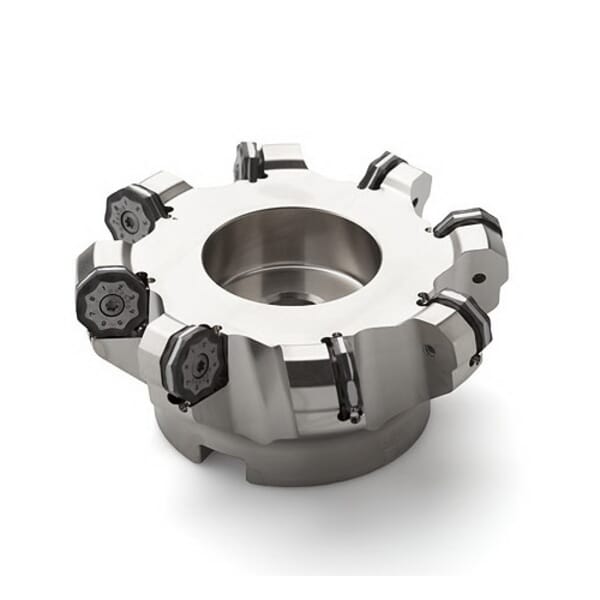

Seco 02670226 Double Octomill Double Sided Insert Indexable Face Mill With Internal Coolant Supply, ANSI Code: R220.48-0063-09-05SA, 78 mm Dia Cutting, 47 mm Dia Shank, 40 mm OAL, 6 mm Max Depth of Cut, 22 mm Dia Arbor Hole, 40 deg Lead Angle
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsSeco 02670226 Double Octomill Double Sided Insert Indexable Face Mill With Internal Coolant Supply, ANSI Code: R220.48-0063-09-05SA, 78 mm Dia Cutting, 47 mm Dia Shank, 40 mm OAL, 6 mm Max Depth of Cut, 22 mm Dia Arbor Hole, 40 deg Lead Angle
ManufacturerSeco
Part #288549811
MFG #02670226
Seco Indexable Face Mill, Double Sided Insert, Series: Double Octomill, 78 mm Cutting Dia, 40 mm Overall Length, 6 mm Maximum Depth of Cut, 5 Inserts, Insert Compatibility: ON.U09, 47 mm Shank Dia, Arbor Shank, 22 mm Arbor Hole, 40 deg Lead Angle, Right Hand Cutting, ANSI Code: R220.48-0063-09-05SA, ISO Code: R220.48-0063-09-05SA, Yes
$989.00
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Seco ToolsANSI Code:Â R220.48-0063-09-05SAArbor Hole Diameter:Â 22 mmCountry of Origin:Â IN, SECutting Diameter:Â 78 mmCutting Direction:Â Right HandInsert Compatibility:Â ON.U09ISO Code:Â R220.48-0063-09-05SALead Angle:Â 40 degManufacturer Name:Â Seco ToolsMaximum Depth of Cut:Â 6 mmNumber of Inserts:Â 5Overall Length:Â 40 mmSeries:Â Double OctomillShank Diameter:Â 47 mmShank Type:Â ArborThrough Coolant (Yes/No):Â YesType:Â Double Sided Insert
- The Double Octomill face milling cutter is a highly versatile, economic and productive tool that can be used for both roughing and finishing. With double-sided inserts featuring a total of 16 cutting edges, the cutter represents a combination of high performance with cost effective operation. Double Octomill also has a coated, pre-hardened body to ensure long tool life by protecting the tool from wear and preventing chips from welding to it. Cutters in the Double Octomill range are divided into three different pitches - normal, normal+ and close to allow users to optimize productivity by perfectly matching the application with the machine tool. For example, if the machine has high power capability, the close pitch cutter is recommended. If the machine has limited power capability, choose the normal or normal+ pitch. Additionally, Double Octomill is now available with a unique design that incorporates cassettes that accommodate Secos cost effective Double Octomill inserts. Modular and removable, the cassettes can be quickly and inexpensively replaced if damaged, avoiding the cost of replacing an entire cutter body. The cassettes use Secos advanced pin locating technology to ensure fast, easy and precise insert positioning. Equally important, the cassette pockets allow adjustability to practically eliminate axial run out, while optimizing feed rates, surface finishes and tool life.
- Manufacturer Name:Â Seco ToolsANSI Code:Â R220.48-0063-09-05SAArbor Hole Diameter:Â 22 mmCountry of Origin:Â IN, SECutting Diameter:Â 78 mmCutting Direction:Â Right HandInsert Compatibility:Â ON.U09ISO Code:Â R220.48-0063-09-05SALead Angle:Â 40 degManufacturer Name:Â Seco ToolsMaximum Depth of Cut:Â 6 mmNumber of Inserts:Â 5Overall Length:Â 40 mmSeries:Â Double OctomillShank Diameter:Â 47 mmShank Type:Â ArborThrough Coolant (Yes/No):Â YesType:Â Double Sided Insert
- The Double Octomill face milling cutter is a highly versatile, economic and productive tool that can be used for both roughing and finishing. With double-sided inserts featuring a total of 16 cutting edges, the cutter represents a combination of high performance with cost effective operation. Double Octomill also has a coated, pre-hardened body to ensure long tool life by protecting the tool from wear and preventing chips from welding to it. Cutters in the Double Octomill range are divided into three different pitches - normal, normal+ and close to allow users to optimize productivity by perfectly matching the application with the machine tool. For example, if the machine has high power capability, the close pitch cutter is recommended. If the machine has limited power capability, choose the normal or normal+ pitch. Additionally, Double Octomill is now available with a unique design that incorporates cassettes that accommodate Secos cost effective Double Octomill inserts. Modular and removable, the cassettes can be quickly and inexpensively replaced if damaged, avoiding the cost of replacing an entire cutter body. The cassettes use Secos advanced pin locating technology to ensure fast, easy and precise insert positioning. Equally important, the cassette pockets allow adjustability to practically eliminate axial run out, while optimizing feed rates, surface finishes and tool life.
