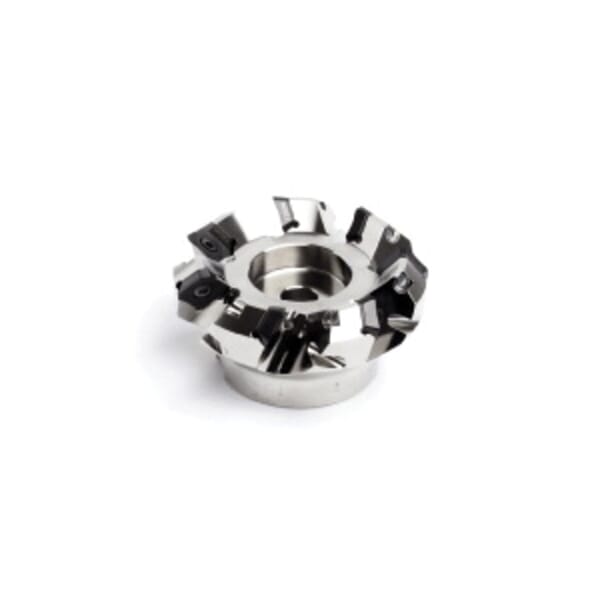

Seco Tools | Seco 02486633 QuattroMill Single Sided Insert Indexable Face Mill, ANSI Code: R220.53-8160-15-10, 176 mm Dia Cutting, 90 mm Dia Shank, 63 mm OAL, 7.5 mm Max Depth of Cut, 40 mm Dia Arbor Hole, 45 deg Lead Angle

Seco 02486633 QuattroMill Single Sided Insert Indexable Face Mill, ANSI Code: R220.53-8160-15-10, 176 mm Dia Cutting, 90 mm Dia Shank, 63 mm OAL, 7.5 mm Max Depth of Cut, 40 mm Dia Arbor Hole, 45 deg Lead Angle

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02486633 QuattroMill Single Sided Insert Indexable Face Mill, ANSI Code: R220.53-8160-15-10, 176 mm Dia Cutting, 90 mm Dia Shank, 63 mm OAL, 7.5 mm Max Depth of Cut, 40 mm Dia Arbor Hole, 45 deg Lead Angle

ManufacturerSeco

Part #288521876

MFG #02486633

Seco Indexable Face Mill, Single Sided Insert, Series: QuattroMill, 176 mm Cutting Dia, 63 mm Overall Length, 7.5 mm Maximum Depth of Cut, 10 Inserts, Insert Compatibility: SE.X1505, 90 mm Shank Dia, Arbor Shank, 40 mm Arbor Hole, 45 deg Lead Angle, Right Hand Cutting, ANSI Code: R220.53-8160-15-10, ISO Code: R220.53-8160-15-10, No

$1,880.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: R220.53-8160-15-10
Arbor Hole Diameter: 40 mm
Country of Origin: IN
Cutting Diameter: 176 mm
Cutting Direction: Right Hand
Insert Compatibility: SE.X1505
ISO Code: R220.53-8160-15-10
Lead Angle: 45 deg
Manufacturer Name: Seco Tools
Maximum Depth of Cut: 7.5 mm
Number of Inserts: 10
Overall Length: 63 mm
Series: QuattroMill
Shank Diameter: 90 mm
Shank Type: Arbor
Through Coolant (Yes/No): No
Type: Single Sided Insert
: QuattroMill is more than a general purpose face mill. It is a simple solution with more teeth per cutter that increases productivity, ease of use, reliability and precision for the full range of face milling applications and materials. QuattroMill features strong, square inserts that meet the needs of most challenging applications and a strong center locking screw with quick insert location make it easy to replace inserts. The cutter body is coated and pre-hardened and features a large chip space for steel and stainless steel machining. Positive cutting rakes/negative radial rakes maximize a machine tools capability and enables increased productivity in both stable and unstable conditions. QuattroMill is available in a wide range of grades and geometries to cover all operations. It can be configured in three different pitches: coarse, normal and close and is offered in diameters ranging from 63 to 200 mm.

: Manufacturer Name: Seco Tools
ANSI Code: R220.53-8160-15-10
Arbor Hole Diameter: 40 mm
Country of Origin: IN
Cutting Diameter: 176 mm
Cutting Direction: Right Hand
Insert Compatibility: SE.X1505
ISO Code: R220.53-8160-15-10
Lead Angle: 45 deg
Manufacturer Name: Seco Tools
Maximum Depth of Cut: 7.5 mm
Number of Inserts: 10
Overall Length: 63 mm
Series: QuattroMill
Shank Diameter: 90 mm
Shank Type: Arbor
Through Coolant (Yes/No): No
Type: Single Sided Insert
: QuattroMill is more than a general purpose face mill. It is a simple solution with more teeth per cutter that increases productivity, ease of use, reliability and precision for the full range of face milling applications and materials. QuattroMill features strong, square inserts that meet the needs of most challenging applications and a strong center locking screw with quick insert location make it easy to replace inserts. The cutter body is coated and pre-hardened and features a large chip space for steel and stainless steel machining. Positive cutting rakes/negative radial rakes maximize a machine tools capability and enables increased productivity in both stable and unstable conditions. QuattroMill is available in a wide range of grades and geometries to cover all operations. It can be configured in three different pitches: coarse, normal and close and is offered in diameters ranging from 63 to 200 mm.
