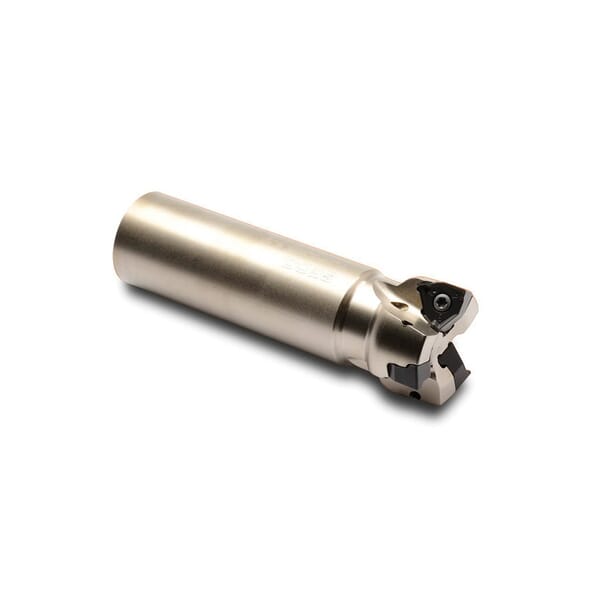

Seco Tools | Seco 02642818 Square 6 Double Sided Insert Indexable Shoulder Mill, ANSI Code: R217.96-01.50-3-08-3A, 38 mm Dia Cutting, Straight Shank, Right Hand Cutting, 90 deg Lead Angle, 4 mm Max Depth of Cut

Seco 02642818 Square 6 Double Sided Insert Indexable Shoulder Mill, ANSI Code: R217.96-01.50-3-08-3A, 38 mm Dia Cutting, Straight Shank, Right Hand Cutting, 90 deg Lead Angle, 4 mm Max Depth of Cut

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02642818 Square 6 Double Sided Insert Indexable Shoulder Mill, ANSI Code: R217.96-01.50-3-08-3A, 38 mm Dia Cutting, Straight Shank, Right Hand Cutting, 90 deg Lead Angle, 4 mm Max Depth of Cut

ManufacturerSeco

Part #288543719

MFG #43719

Seco Indexable Shoulder Mill, Double Sided Insert, Series: Square 6, 38 mm Cutting Dia, 114.3 mm Overall Length, 4 mm Maximum Depth of Cut, 3 Inserts, Insert Compatibility: XNEX08.., 31.8 mm Shank Dia, Straight Shank, 85 mm Shank Length, Right Hand Cutting, ANSI Code: R217.96-01.50-3-08-3A, ISO Code: R217.96-01.50-3-08-3A, 90 deg Lead Angle, Yes, Steel

$769.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: R217.96-01.50-3-08-3A
Country of Origin: SE
Cutting Diameter: 38 mm
Cutting Direction: Right Hand
Insert Compatibility: XNEX08..
ISO Code: R217.96-01.50-3-08-3A
Lead Angle: 90 deg
Manufacturer Name: Seco Tools
Material: Steel
Maximum Depth of Cut: 4 mm
Number of Inserts: 3
Overall Length: 114.3 mm
Series: Square 6
Shank Diameter: 31.8 mm
Shank Length: 85 mm
Shank Type: Straight
Through Coolant (Yes/No): Yes
Type: Double Sided Insert
: Secos line of Square 6 shoulder milling cutters answers the need for added economy in square shoulder milling. This unique square shoulder milling cutter uses trigonal inserts with three cutting edges on each side - 6 total cutting edges to lower the cost per cutting edge. Inserts lock into place via a strong center screw placed in the same direction as cutting forces and wiper flats optimize surface finishes. The 90 deg setting angle ensures a true 90 deg square in one milling operation, eliminating the need for secondary operations and saving valuable production time and money.
: Video Link

: Manufacturer Name: Seco Tools
ANSI Code: R217.96-01.50-3-08-3A
Country of Origin: SE
Cutting Diameter: 38 mm
Cutting Direction: Right Hand
Insert Compatibility: XNEX08..
ISO Code: R217.96-01.50-3-08-3A
Lead Angle: 90 deg
Manufacturer Name: Seco Tools
Material: Steel
Maximum Depth of Cut: 4 mm
Number of Inserts: 3
Overall Length: 114.3 mm
Series: Square 6
Shank Diameter: 31.8 mm
Shank Length: 85 mm
Shank Type: Straight
Through Coolant (Yes/No): Yes
Type: Double Sided Insert
: Secos line of Square 6 shoulder milling cutters answers the need for added economy in square shoulder milling. This unique square shoulder milling cutter uses trigonal inserts with three cutting edges on each side - 6 total cutting edges to lower the cost per cutting edge. Inserts lock into place via a strong center screw placed in the same direction as cutting forces and wiper flats optimize surface finishes. The 90 deg setting angle ensures a true 90 deg square in one milling operation, eliminating the need for secondary operations and saving valuable production time and money.
