Seco Tools | Seco 00045739 Snap-Tap Laydown Threading Insert, ANSI Code: 11NR0.5ISO CP500, 11NR Insert, Internal Thread, ISO Thread, 0.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: CP500, Material Grade: M

Seco 00045739 Snap-Tap Laydown Threading Insert, ANSI Code: 11NR0.5ISO CP500, 11NR Insert, Internal Thread, ISO Thread, 0.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: CP500, Material Grade: M

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00045739 Snap-Tap Laydown Threading Insert, ANSI Code: 11NR0.5ISO CP500, 11NR Insert, Internal Thread, ISO Thread, 0.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: CP500, Material Grade: M

ManufacturerSeco

Part #288545739

MFG #00045739

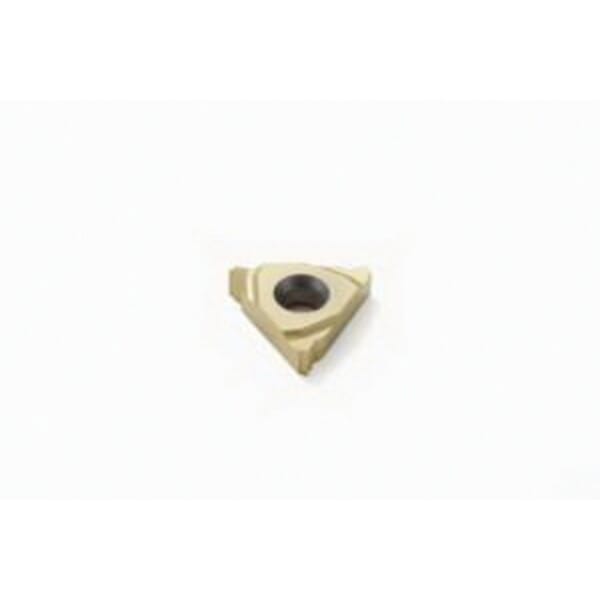

Seco Threading Insert, Laydown, Series: Snap-Tap, 11NR Insert, 11 Insert, Internal, ISO, 0.5 mm Pitch, 6.4 mm Inscribed Circle, 3 mm Thickness, 11 mm Length, ANSI Code: 11NR0.5ISO CP500, ISO Code: 11NR0.5ISO CP500, 0.03 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

$32.50

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: 11NR0.5ISO CP500
Corner Radius: 0.03 mm
Country of Origin: IN
Cutting Direction: Right Hand
Finish: PVD-TiAlN+TiN Coated
Included Angle: 60 deg
Inscribed Circle: 6.4 mm
Insert Size: 11
Insert Style: 11NR
ISO Code: 11NR0.5ISO CP500
Length: 11 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Material Grade: M
Pitch: 0.5 mm
Series: Snap-Tap
Thickness: 3 mm
Thread Standard: ISO
Thread Type: Internal
Type: Laydown
: Seco Threading Insert, Laydown, Series: Snap-Tap, 11NR Insert, 11 Insert, Internal, ISO, 0.5 mm Pitch, 6.4 mm Inscribed Circle, 3 mm Thickness, 11 mm Length, ANSI Code: 11NR0.5ISO CP500, ISO Code: 11NR0.5ISO CP500, 0.03 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M
