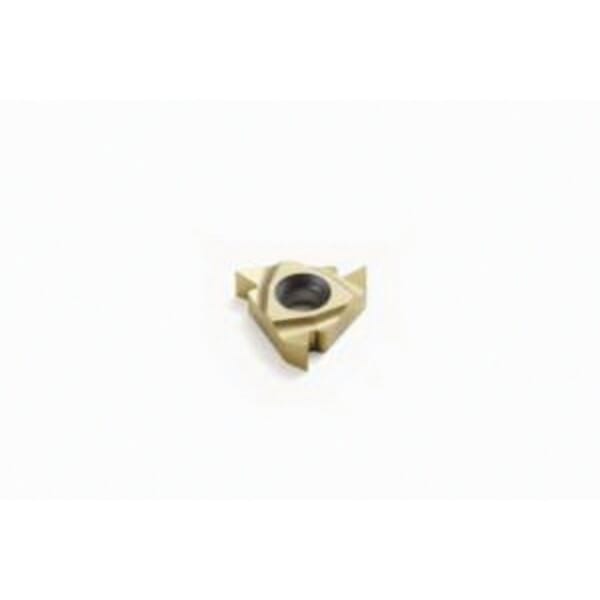

Name: Seco 00045736 Snap-Tap Laydown Threading Insert, ANSI Code: 11NLA60 CP500, 11NLA Insert, 48 to 16 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Left Hand Cutting, Manufacturers Grade: CP500, Material Grade: M
Brand: Seco Tools
SKU: SECO_TOOLS_Q2_18_103404
Availability: OutOfStock

Seco Tools

Seco 00045736 Snap-Tap Laydown Threading Insert, ANSI Code: 11NLA60 CP500, 11NLA Insert, 48 to 16 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Left Hand Cutting, Manufacturers Grade: CP500, Material Grade: M

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00045736 Snap-Tap Laydown Threading Insert, ANSI Code: 11NLA60 CP500, 11NLA Insert, 48 to 16 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Left Hand Cutting, Manufacturers Grade: CP500, Material Grade: M

ManufacturerSeco

Part #288545736

MFG #00045736

Seco Threading Insert, Laydown, Series: Snap-Tap, 11NLA Insert, 11 Insert, Internal Thread, 60 deg Partial Profile Thread Standard, 0.5 to 1.5 mm Pitch, 48 to 16 Threads per Inch, 6.4 mm Inscribed Circle, 3 mm Thickness, 11 mm Length, ANSI Code: 11NLA60 CP500, ISO Code: 11NLA60 CP500, 0.08 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: CP500, Left Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: 11NLA60 CP500
Corner Radius: 0.08 mm
Country of Origin: IN
Cutting Direction: Left Hand
Finish: PVD-TiAlN+TiN Coated
Included Angle: 60 deg
Inscribed Circle: 6.4 mm
Insert Size: 11
Insert Style: 11NLA
ISO Code: 11NLA60 CP500
Length: 11 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Material Grade: M
Pitch: 0.5 to 1.5 mm
Series: Snap-Tap
Thickness: 3 mm
Thread Standard: 60 deg Partial Profile
Thread Type: Internal
Threads per Inch: 48 to 16
Type: Laydown
: The Thread turning insert 11NLA60 CP500 features a partial profile 60 internal thread form with a minimum of 48 threads per inch. It is made from carbide with a PVD coating and has a grade designation of CP500. The insert includes one tooth and three cutting edges. It is primarily designed for steel and stainless steel workpiece materials and is partially applicable for cast irons as well as superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog

: Manufacturer Name: Seco Tools
ANSI Code: 11NLA60 CP500
Corner Radius: 0.08 mm
Country of Origin: IN
Cutting Direction: Left Hand
Finish: PVD-TiAlN+TiN Coated
Included Angle: 60 deg
Inscribed Circle: 6.4 mm
Insert Size: 11
Insert Style: 11NLA
ISO Code: 11NLA60 CP500
Length: 11 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Material Grade: M
Pitch: 0.5 to 1.5 mm
Series: Snap-Tap
Thickness: 3 mm
Thread Standard: 60 deg Partial Profile
Thread Type: Internal
Threads per Inch: 48 to 16
Type: Laydown
: The Thread turning insert 11NLA60 CP500 features a partial profile 60 internal thread form with a minimum of 48 threads per inch. It is made from carbide with a PVD coating and has a grade designation of CP500. The insert includes one tooth and three cutting edges. It is primarily designed for steel and stainless steel workpiece materials and is partially applicable for cast irons as well as superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
