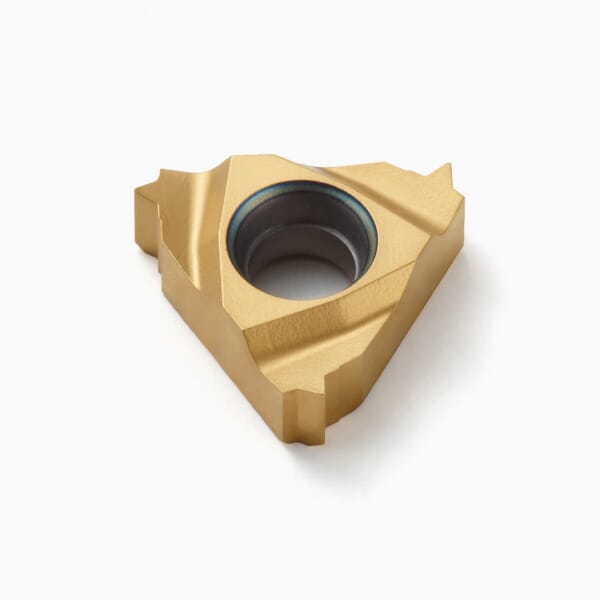

Seco 00023822 Snap-Tap Laydown Threading Insert, ANSI Code: 09NRA55 CP500, 09NR Insert, 48 to 16 TPI, Internal Thread, 55 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: CP500, Material Grade: M

ManufacturerSeco

Part #288523822

MFG #00023822

Seco Threading Insert, Laydown, Series: Snap-Tap, 09NR Insert, 09 Insert, Internal, 55 deg Partial Profile, 0.5 to 1.5 mm Pitch, 48 to 16, 5.6 mm Inscribed Circle, 2.4 mm Thickness, 9.6 mm Length, ANSI Code: 09NRA55 CP500, ISO Code: 09NRA55 CP500, 0.08 mm Corner Radius, 55 deg Included Angle, Manufacturers Grade: CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

$32.50

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: 09NRA55 CP500
Corner Radius: 0.08 mm
Country of Origin: IN
Cutting Direction: Right Hand
Finish: PVD-TiAlN+TiN Coated
Included Angle: 55 deg
Inscribed Circle: 5.6 mm
Insert Size: 09
Insert Style: 09NR
ISO Code: 09NRA55 CP500
Length: 9.6 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Material Grade: M
Pitch: 0.5 to 1.5 mm
Series: Snap-Tap
Thickness: 2.4 mm
Thread Standard: 55 deg Partial Profile
Thread Type: Internal
Threads per Inch: 48 to 16
Type: Laydown
: Seco Threading Insert, Laydown, Series: Snap-Tap, 09NR Insert, 09 Insert, Internal, 55 deg Partial Profile, 0.5 to 1.5 mm Pitch, 48 to 16, 5.6 mm Inscribed Circle, 2.4 mm Thickness, 9.6 mm Length, ANSI Code: 09NRA55 CP500, ISO Code: 09NRA55 CP500, 0.08 mm Corner Radius, 55 deg Included Angle, Manufacturers Grade: CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M
