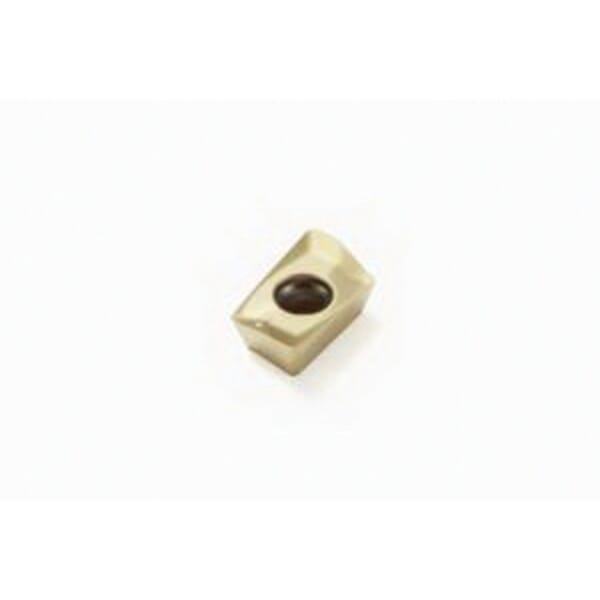

Name: Seco 00005985 Milling Insert, ANSI Code: XOEX120420FR-E06 F15M, XOEX Insert, 120420 Insert, Carbide, Manufacturers Grade: F15M, Parallelogram Shape, Material Grade: C5
Brand: Seco Tools
SKU: SECO_TOOLS_Q2_18_100557
Availability: OutOfStock

Seco Tools

Seco 00005985 Milling Insert, ANSI Code: XOEX120420FR-E06 F15M, XOEX Insert, 120420 Insert, Carbide, Manufacturers Grade: F15M, Parallelogram Shape, Material Grade: C5

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00005985 Milling Insert, ANSI Code: XOEX120420FR-E06 F15M, XOEX Insert, 120420 Insert, Carbide, Manufacturers Grade: F15M, Parallelogram Shape, Material Grade: C5

ManufacturerSeco

Part #288505985

MFG #00005985

Seco Milling Insert, XOEX Insert, 120420 Insert, Parallelogram, 4.76 mm Thickness, 8.2 mm Width, E06 Chipbreaker, 2 mm Corner Radius, Manufacturers Grade: F15M, ANSI Code: XOEX120420FR-E06 F15M, Right Hand, Carbide, PVD-TiAlN+TiN Coated, Material Grade: C5, Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials Material Application

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: XOEX120420FR-E06 F15M
Chipbreaker: E06
Corner Radius: 2 mm
Country of Origin: SE
Finish: PVD-TiAlN+TiN Coated
Hand of Insert: Right
Insert Size: 120420
Insert Style: XOEX
Manufacturer Name: Seco Tools
Manufacturers Grade: F15M
Material: Carbide
Material Application: Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials
Material Grade: C5
Shape: Parallelogram
Thickness: 4.76 mm
Width: 8.2 mm
: The Milling insert XOEX120420FR-E06 F15M features two cutting edges and a single-sided design with a clearance angle of 15 degrees. With a corner radius of 2 mm and a wiper edge length of 0.6 mm, it is designed for easy applications with an average chip thickness of 0.06 mm. The insert rake angle is 21.2 degrees, and it uses a carbide PVD grade. The cutting geometry type is classified as E06. This insert is suitable for milling cutters, square shoulder mills, helical mills, plunge mills, and turbo 2-cutting-edge single-sided inserts, including sizes 12 for helical turbo, plunge turbo, and turbo 12 categories. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link

: Manufacturer Name: Seco Tools
ANSI Code: XOEX120420FR-E06 F15M
Chipbreaker: E06
Corner Radius: 2 mm
Country of Origin: SE
Finish: PVD-TiAlN+TiN Coated
Hand of Insert: Right
Insert Size: 120420
Insert Style: XOEX
Manufacturer Name: Seco Tools
Manufacturers Grade: F15M
Material: Carbide
Material Application: Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials
Material Grade: C5
Shape: Parallelogram
Thickness: 4.76 mm
Width: 8.2 mm
: The Milling insert XOEX120420FR-E06 F15M features two cutting edges and a single-sided design with a clearance angle of 15 degrees. With a corner radius of 2 mm and a wiper edge length of 0.6 mm, it is designed for easy applications with an average chip thickness of 0.06 mm. The insert rake angle is 21.2 degrees, and it uses a carbide PVD grade. The cutting geometry type is classified as E06. This insert is suitable for milling cutters, square shoulder mills, helical mills, plunge mills, and turbo 2-cutting-edge single-sided inserts, including sizes 12 for helical turbo, plunge turbo, and turbo 12 categories. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link
