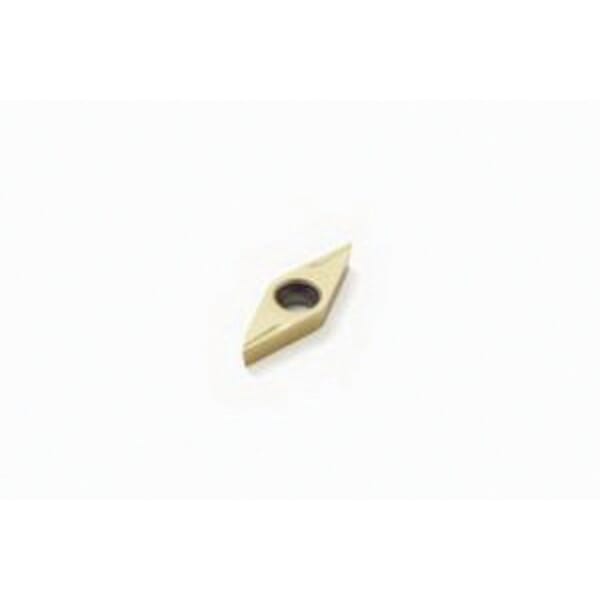

Name: Seco 00014948 Perfomax Indexable Drill Insert, ANSI Code: VCGX090202-D1, 090202 Insert, VCGX Insert, 2.5 mm THK, 5.6 mm Inscribed Circle, Manufacturers Grade: T400D
Brand: Seco Tools
SKU: SECO_TOOLS_Q2_18_101112
Availability: OutOfStock

Seco Tools

Seco 00014948 Perfomax Indexable Drill Insert, ANSI Code: VCGX090202-D1, 090202 Insert, VCGX Insert, 2.5 mm THK, 5.6 mm Inscribed Circle, Manufacturers Grade: T400D

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco 00014948 Perfomax Indexable Drill Insert, ANSI Code: VCGX090202-D1, 090202 Insert, VCGX Insert, 2.5 mm THK, 5.6 mm Inscribed Circle, Manufacturers Grade: T400D

ManufacturerSeco

Part #288514948

MFG #00014948

Seco Indexable Drill Insert, Series: Perfomax, VCGX Insert, 090202 Insert, 5.6 mm Inscribed Circle, 2.5 mm Thickness, D1 Chipbreaker, 0.2 mm Corner Radius, 0.1142 in Hole Dia, Manufacturers Grade: T400D, 35 deg Included Angle, ANSI Code: VCGX090202-D1, Carbide, PVD-TiAlN+TiN Coated

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: VCGX090202-D1

Chipbreaker: D1

Corner Radius: 0.2 mm

Country of Origin: CZ, SE

Finish: PVD-TiAlN+TiN Coated

Hole Diameter: 0.1142 in

Included Angle: 35 deg

Inscribed Circle: 5.6 mm

Insert Size: 090202

Insert Style: VCGX

Manufacturer Name: Seco Tools

Manufacturers Grade: T400D

Material: Carbide

Series: Perfomax

Thickness: 2.5 mm

Features strong square inserts with four cutting edges, high drill body stability, a low-friction coating, unique chip flute design and inserts with modern grades that use Duratomic technology
Tough center insert grade for maximum application security

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low-friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications. Perfomax inserts are available in three grades - DP3000, DP2000 and T250D - featuring Secos Duratomic technology, which provides the grade with a thicker coating, makes it extremely resistant to heat and enables drilling at high speeds in steel and cast iron.

Manufacturer Name: Seco Tools

ANSI Code: VCGX090202-D1

Chipbreaker: D1

Corner Radius: 0.2 mm

Country of Origin: CZ, SE

Finish: PVD-TiAlN+TiN Coated

Hole Diameter: 0.1142 in

Included Angle: 35 deg

Inscribed Circle: 5.6 mm

Insert Size: 090202

Insert Style: VCGX

Manufacturer Name: Seco Tools

Manufacturers Grade: T400D

Material: Carbide

Series: Perfomax

Thickness: 2.5 mm

Features strong square inserts with four cutting edges, high drill body stability, a low-friction coating, unique chip flute design and inserts with modern grades that use Duratomic technology
Tough center insert grade for maximum application security

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low-friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications. Perfomax inserts are available in three grades - DP3000, DP2000 and T250D - featuring Secos Duratomic technology, which provides the grade with a thicker coating, makes it extremely resistant to heat and enables drilling at high speeds in steel and cast iron.
