Name: Seco 00096763 Boring Insert, ANSI Code: WBGW030102, WBGW Insert, 4 mm Inscribed Circle, Carbide, Manufacturers Grade: 91J3
Brand: Seco Tools
SKU: SECO_TOOLS_Q2_18_106132
Availability: OutOfStock

Seco Tools

Seco 00096763 Boring Insert, ANSI Code: WBGW030102, WBGW Insert, 4 mm Inscribed Circle, Carbide, Manufacturers Grade: 91J3

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00096763 Boring Insert, ANSI Code: WBGW030102, WBGW Insert, 4 mm Inscribed Circle, Carbide, Manufacturers Grade: 91J3

ManufacturerSeco

Part #288596763

MFG #00096763

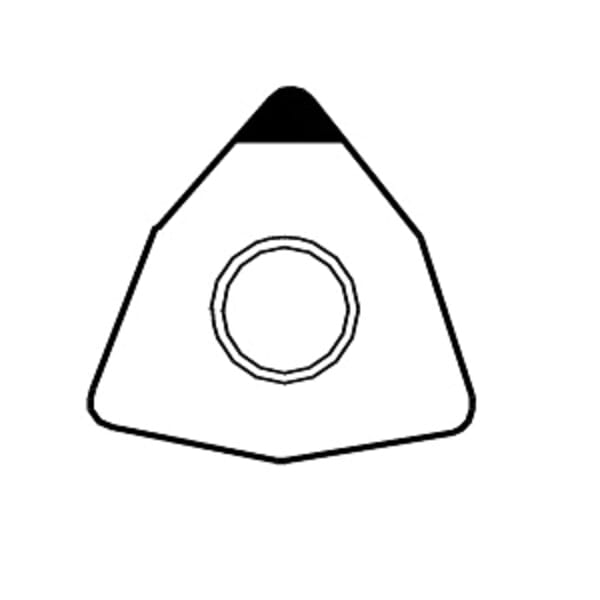

Seco Boring Insert, WBGW Insert, 030102 Insert, Trigon, 4 mm Inscribed Circle, 1.6 mm Thickness, 0.2 mm Corner Radius, 2.4 mm Hole Dia, Manufacturers Grade: 91J3, ANSI Code: WBGW030102, 80 deg Included Angle, Carbide

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: WBGW030102
Corner Radius: 0.2 mm
Country of Origin: DE, FR
Hole Diameter: 2.4 mm
Included Angle: 80 deg
Inscribed Circle: 4 mm
Insert Size: 030102
Insert Style: WBGW
Manufacturer Name: Seco Tools
Manufacturers Grade: 91J3
Material: Carbide
Shape: Trigon
Thickness: 1.6 mm
: The Turning insert WBGW030102 91J3 features a positive type with a clearance angle major of 5 degrees. It is made from coated carbide with grade 91J3. The insert has three cutting edges and a corner radius of 0.2 mm. With a cutting edge effective length of 4.8 mm, the insert is designed with a neutral hand orientation. Its main application area is non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link

: Manufacturer Name: Seco Tools
ANSI Code: WBGW030102
Corner Radius: 0.2 mm
Country of Origin: DE, FR
Hole Diameter: 2.4 mm
Included Angle: 80 deg
Inscribed Circle: 4 mm
Insert Size: 030102
Insert Style: WBGW
Manufacturer Name: Seco Tools
Manufacturers Grade: 91J3
Material: Carbide
Shape: Trigon
Thickness: 1.6 mm
: The Turning insert WBGW030102 91J3 features a positive type with a clearance angle major of 5 degrees. It is made from coated carbide with grade 91J3. The insert has three cutting edges and a corner radius of 0.2 mm. With a cutting edge effective length of 4.8 mm, the insert is designed with a neutral hand orientation. Its main application area is non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link
