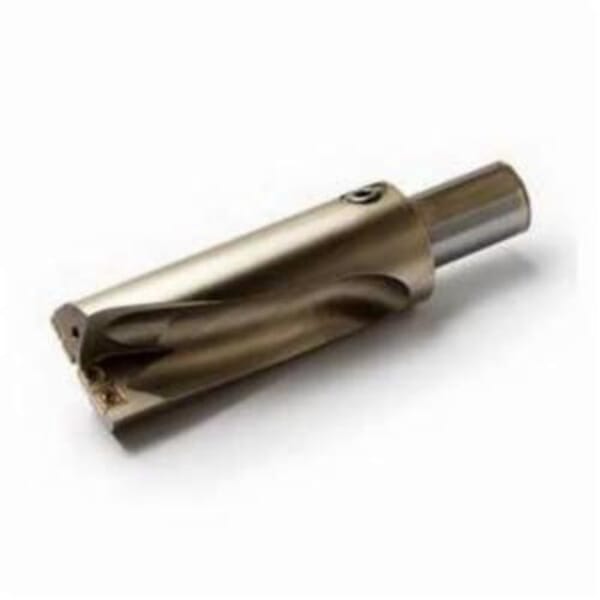

Seco 02590460 Perfomax SD542 Indexable Insert Drill, 80 mm Drill, 79 mm Modular Connection, 50 mm Dia Shank, 2.5XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 200 mm D Max Drill

ManufacturerSeco

Part #288534751

MFG #02590460

Seco Indexable Insert Drill, Series: Perfomax SD542, 80 mm Drill, 50 mm Shank Diameter, 78 mm Shank Length, ISO 9766 Shank, 79 mm Modular Connection, SPGX/SCGX Insert, 200 mm Maximum Drill Depth, 80 mm Diameter, 2.5XD Drill Depth by Diameter Ratio, 4 Drill Inserts, Insert Compatibility: SPGX12T3-C1 Center, SCGX120408.. Peripheral, 210 mm Flute Length, Yes Through Coolant

$1,460.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 80 mm

Drill Depth by Diameter Ratio: 2.5XD

Drill Size: 80 mm

Flute Length: 210 mm

Insert Compatibility: SPGX12T3-C1 Center, SCGX120408.. Peripheral

Insert Style: SPGX/SCGX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 200 mm

Modular Connection Size: 79 mm

Number of Drill Inserts: 4

Series: Perfomax SD542

Shank Diameter: 50 mm

Shank Length: 78 mm

Shank Type: ISO 9766

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Video Link

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 80 mm

Drill Depth by Diameter Ratio: 2.5XD

Drill Size: 80 mm

Flute Length: 210 mm

Insert Compatibility: SPGX12T3-C1 Center, SCGX120408.. Peripheral

Insert Style: SPGX/SCGX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 200 mm

Modular Connection Size: 79 mm

Number of Drill Inserts: 4

Series: Perfomax SD542

Shank Diameter: 50 mm

Shank Length: 78 mm

Shank Type: ISO 9766

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
