Seco Tools | Seco 02712374 SD230A Shank Drill, 7.938 mm Drill - Metric, 0.3125 in Drill - Decimal Inch, 279 mm OAL, Solid Carbide

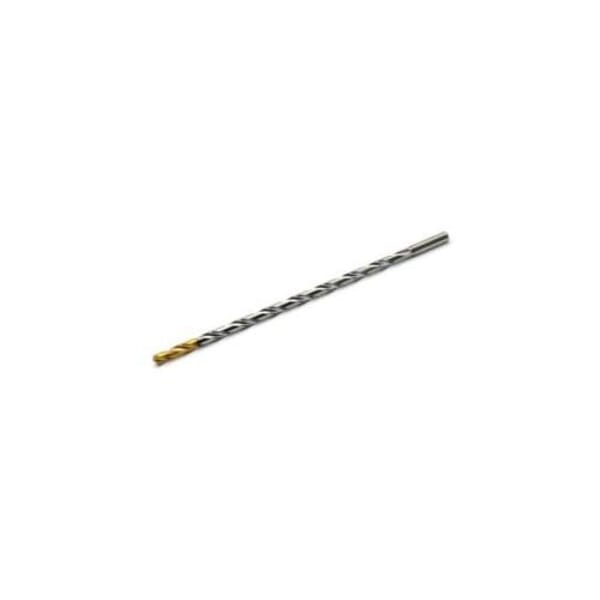

Seco 02712374 SD230A Shank Drill, 7.938 mm Drill - Metric, 0.3125 in Drill - Decimal Inch, 279 mm OAL, Solid Carbide

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02712374 SD230A Shank Drill, 7.938 mm Drill - Metric, 0.3125 in Drill - Decimal Inch, 279 mm OAL, Solid Carbide

ManufacturerSeco

Part #288558855

MFG #02712374

Seco Shank Drill, Series: 1535, 7.938 mm Drill Size - Metric, 0.3125 in Drill Size - Decimal Inch, 279 mm Overall Length, 30XD Cutting Depth, 2 Flutes, Spiral Flute, 239 mm Flute Length, 8 mm Dia x 36 mm L Shank, Cylindrical Shank, 136 deg Point, Self-Centering Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, PVD/TiAlN/TiN Coated, Applicable Materials: Cast Iron, Plastic and Non-Ferrous Metals, DIN 6537A Specifications Met, Yes Through Coolant (Yes/No)

$835.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Applicable Materials: Cast Iron, Plastic and Non-Ferrous Metals

Country of Origin: SE, US

Cutting Depth: 30XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.3125 in

Drill Size - Metric: 7.938 mm

Finish: PVD/TiAlN/TiN Coated

Flute Length: 239 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 279 mm

Point Angle: 136 deg

Point Type: Self-Centering

Series: SD230A

Shank Size: 8 mm Dia x 36 mm L

Shank Type: Cylindrical

Specifications Met: DIN 6537A

Through Coolant (Yes/No): Yes

Spiral flutes are constructed of a higher flute angle to remove chips easier
High productivity and low cost per hole
High hole quality with no need for center drilling operations
High hot hardness with special TiAlN coating
Strong cutting edge
High cutting edge quality
High strength carbide rod minimizes risk for breakages
Low friction coating (TiAlN) for improved chip evacuation
Protective corner chamfer

DIN 6537A

Seco Feedmax is our latest generation of high performance solid carbide drills. They offer a unique combination of state of the art carbide, coating and geometry technology.

Manufacturer Name: Seco Tools

Applicable Materials: Cast Iron, Plastic and Non-Ferrous Metals

Country of Origin: SE, US

Cutting Depth: 30XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.3125 in

Drill Size - Metric: 7.938 mm

Finish: PVD/TiAlN/TiN Coated

Flute Length: 239 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 279 mm

Point Angle: 136 deg

Point Type: Self-Centering

Series: SD230A

Shank Size: 8 mm Dia x 36 mm L

Shank Type: Cylindrical

Specifications Met: DIN 6537A

Through Coolant (Yes/No): Yes

Spiral flutes are constructed of a higher flute angle to remove chips easier
High productivity and low cost per hole
High hole quality with no need for center drilling operations
High hot hardness with special TiAlN coating
Strong cutting edge
High cutting edge quality
High strength carbide rod minimizes risk for breakages
Low friction coating (TiAlN) for improved chip evacuation
Protective corner chamfer

DIN 6537A

Seco Feedmax is our latest generation of high performance solid carbide drills. They offer a unique combination of state of the art carbide, coating and geometry technology.
