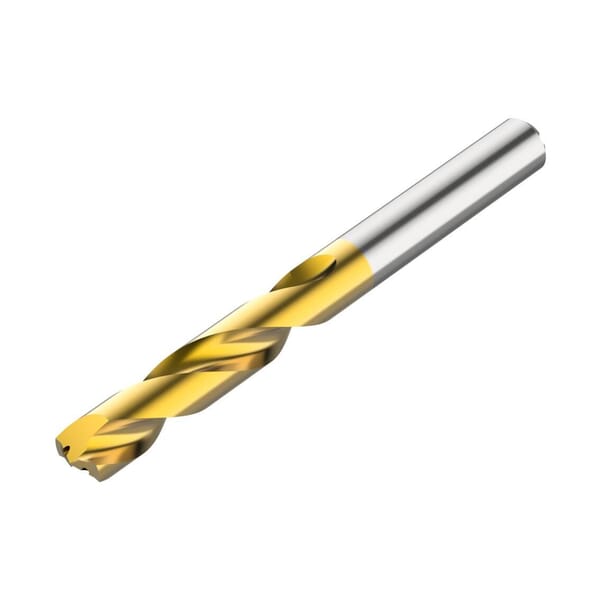

Seco Tools | Seco 02691707 SD245A Shank Drill, 12.7 mm Drill - Metric, 0.5 in Drill - Decimal Inch, 124 mm OAL, Solid Carbide

Seco 02691707 SD245A Shank Drill, 12.7 mm Drill - Metric, 0.5 in Drill - Decimal Inch, 124 mm OAL, Solid Carbide

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco 02691707 SD245A Shank Drill, 12.7 mm Drill - Metric, 0.5 in Drill - Decimal Inch, 124 mm OAL, Solid Carbide

ManufacturerSeco

Part #288553788

MFG #02691707

Seco Shank Drill, Series: SPC408, 12.7 mm Drill Size - Metric, 0.5 in Drill Size - Decimal Inch, 124 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 77 mm Flute Length, 14 mm Dia x 45 mm L Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, PVD/TiAlN/TiN Coated, Applicable Materials: Cast Iron, Plastic and Non-Ferrous Metals, DIN 6537A Specifications Met, Yes Through Coolant (Yes/No)

$522.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Applicable Materials: Cast Iron, Plastic and Non-Ferrous Metals

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.5 in

Drill Size - Metric: 12.7 mm

Finish: PVD/TiAlN/TiN Coated

Flute Length: 77 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 124 mm

Point Angle: 140 deg

Point Type: Self-Centering

Series: SD245A

Shank Size: 14 mm Dia x 45 mm L

Shank Type: Cylindrical

Specifications Met: DIN 6537A

Through Coolant (Yes/No): Yes

Spiral flutes are constructed of a higher flute angle to remove chips easier
High productivity and low cost per hole
High hole quality with no need for center drilling operations
High hot hardness with special TiAlN coating
Strong cutting edge
High cutting edge quality
High strength carbide rod minimizes risk for breakages
Low friction coating (TiAlN) for improved chip evacuation
Protective corner chamfer
Symmetrical design for extra stability
Reduced radial forces during interrupted cuts

DIN 6537A

Seco Feedmax SD245A is an effective solution to address performance drilling with irregular exits and cross-hole interruptions. Demanding application and component shapes can be difficult to effectively Seco Feedmax SD245A machine with ordinary tools. Specialized solutions and drilling competence are needed to complete these tasks. The SD245A has a custom designed drill point and 4-land margins that can accommodate challenging and difficult drilling circumstances with irregular exit shapes and more. SD245A provides similar performance and hole quality as a regular solid carbide drill with the extra benefit of being able to handle uneven exit surfaces. One single SD245A drill can be used to rationalize and replace multiple tools and simplify complex drilling tasks.

Manufacturer Name: Seco Tools

Applicable Materials: Cast Iron, Plastic and Non-Ferrous Metals

Country of Origin: US

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.5 in

Drill Size - Metric: 12.7 mm

Finish: PVD/TiAlN/TiN Coated

Flute Length: 77 mm

Flute Type: Spiral

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 124 mm

Point Angle: 140 deg

Point Type: Self-Centering

Series: SD245A

Shank Size: 14 mm Dia x 45 mm L

Shank Type: Cylindrical

Specifications Met: DIN 6537A

Through Coolant (Yes/No): Yes

Spiral flutes are constructed of a higher flute angle to remove chips easier
High productivity and low cost per hole
High hole quality with no need for center drilling operations
High hot hardness with special TiAlN coating
Strong cutting edge
High cutting edge quality
High strength carbide rod minimizes risk for breakages
Low friction coating (TiAlN) for improved chip evacuation
Protective corner chamfer
Symmetrical design for extra stability
Reduced radial forces during interrupted cuts

DIN 6537A

Seco Feedmax SD245A is an effective solution to address performance drilling with irregular exits and cross-hole interruptions. Demanding application and component shapes can be difficult to effectively Seco Feedmax SD245A machine with ordinary tools. Specialized solutions and drilling competence are needed to complete these tasks. The SD245A has a custom designed drill point and 4-land margins that can accommodate challenging and difficult drilling circumstances with irregular exit shapes and more. SD245A provides similar performance and hole quality as a regular solid carbide drill with the extra benefit of being able to handle uneven exit surfaces. One single SD245A drill can be used to rationalize and replace multiple tools and simplify complex drilling tasks.
