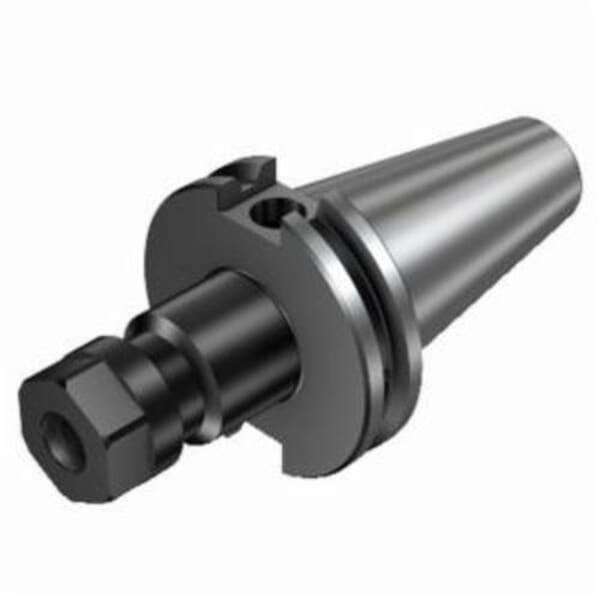

Sandvik Coromant 5721250 Collet Chuck, Tapered Shank, ER32 Collet System, 32 mm Chuck

ManufacturerSandvik Coromant

Part #826221250

MFG #5721250

Sandvik Coromant Collet Chuck, Series: LV533, 173.04 mm Overall Length, 49.73 mm Nose Dia, 104.65 mm Head Length/Projection, ER32 Collet System, Tapered Shank, 32 mm Chuck, CAT-V40 Taper, 49.73 mm Collet Nut Dia, ANSI Code: AA3B14-40 32 105, ISO Code: AA3B14-40 32 105, Yes Through Coolant (Yes/No)

$226.30

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: AA3B14-40 32 105

Chuck Size: 32 mm

Collet Nut Diameter: 49.73 mm

Collet System: ER32

Country of Origin: US

Head Length/Projection: 104.65 mm

ISO Code: AA3B14-40 32 105

Manufacturer Name: Sandvik Coromant

Nose Diameter: 49.73 mm

Overall Length: 173.04 mm

Shank Type: Tapered

Taper Size: CAT-V40

Through Coolant (Yes/No): Yes

CAT-V -AD/B central/flange coolant - CAT-V40 machine side adaptive interface
ER collet (DIN6499-B) -ER32 workpiece side adaptive interface
63.55 mm Dia body
0 deg body half taper
Steel body
Decentral over flange and axial coolant entry
80 bar coolant
Axial concentric coolant exit
33 mm Dia connection
104.65 mm L body
18000 r/min
AA3B14 (2) tool style
20 life cycle state

5763406 Locking Nut

DIN 6499-B

5763406 Locking Nut
