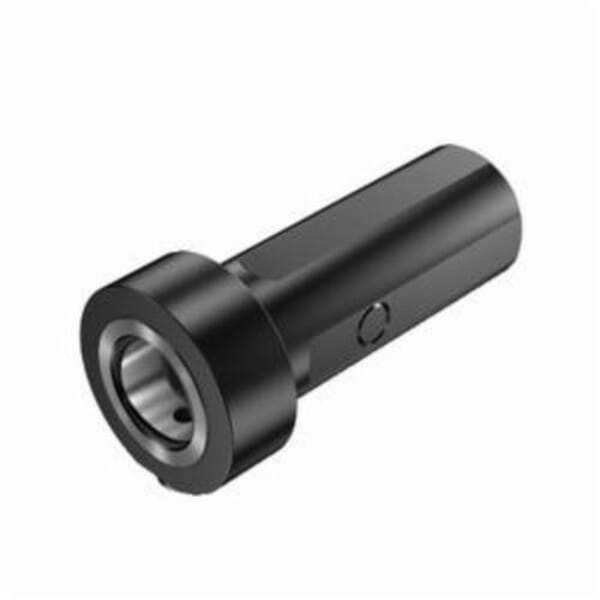

Sandvik Coromant 5726884 Neutral Clamping Unit, Cylindrical Shank with 3-Flat x Coromant Capto Shank, C3 Workpiece Side, 1.2598 in Arbor/Shank, 1.7913 in Dia Body, 3.8582 in OAL

ManufacturerSandvik Coromant

Part #826216027

MFG #5726884

Sandvik Coromant Clamping Unit, Neutral, 1.2598 in Arbor/Shank, 1.7913 in Diameter Body, 0.7086 in Gage Length, 3.8582 in Overall Length, 1.7913 in Overall Width, 1.0236 in Centerline Height, ANSI Code: C3-NC2000-08018-32, ISO Code: C3-NC2000-08018-32, 3.1496 in Shank Length, Cylindrical Shank with 3-Flat x Coromant Capto Shank, C3 System Size Workpiece Side

$1,518.40

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: C3-NC2000-08018-32

Arbor/Shank Size: 1.2598 in

Body Diameter: 1.7913 in

Centerline Height: 1.0236 in

Country of Origin: DE

Gage Length: 0.7086 in

ISO Code: C3-NC2000-08018-32

Manufacturer Name: Sandvik Coromant

Overall Length: 3.8582 in

Overall Width: 1.7913 in

Shank Length: 3.1496 in

Shank Type: Cylindrical Shank with 3-Flat x Coromant Capto

System Size Workpiece Side: C3

Type: Neutral

0 deg body half taper
Radial coolant entry
G1/8 coolant thread
80 bar coolant
Radial coolant exit
18 mm overhang
35 Nm torque
Cx-NC2000 tool style
32 mm body machine side
32 mm workpiece side connection
20 life cycle state

5715185 Screw, 5758257 Key, 5759087 Blind Plug, 5759208 O-Ring, 5759214 O-Ring, 5762975 Drawbar, 5763056 Thread Ring, 5763467 Clamping Screw, 5763510 Ring, 5763533 Segment, 5763561 Holder Set, 5763577 Circlip, 5763608 Support Pin, 5763725 Spring and 5763897 O-Ring
