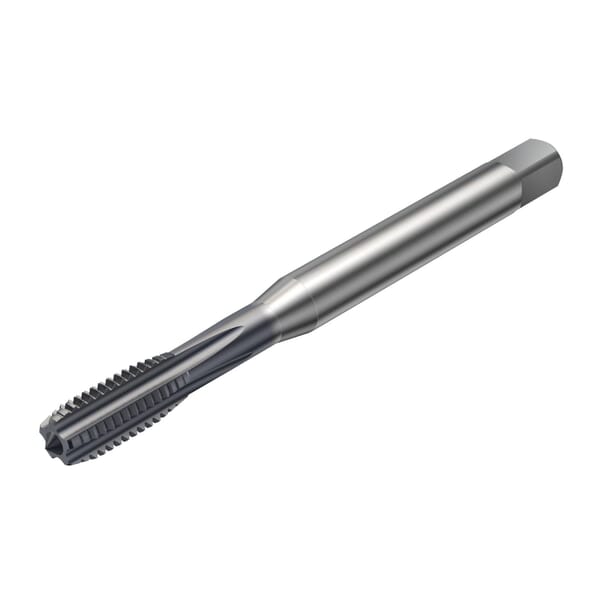

Name: Sandvik Coromant 6871190 CoroTap 100 Straight Flute Tap, Right Hand Cutting, M5x0.8 Thread, Semi-Bottoming Chamfer, 5 Flutes, TiAlN Coated, HSS
Brand: Sandvik Coromant
SKU: UNISDK042660
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 6871190 CoroTap 100 Straight Flute Tap, Right Hand Cutting, M5x0.8 Thread, Semi-Bottoming Chamfer, 5 Flutes, TiAlN Coated, HSS

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6871190 CoroTap 100 Straight Flute Tap, Right Hand Cutting, M5x0.8 Thread, Semi-Bottoming Chamfer, 5 Flutes, TiAlN Coated, HSS

ManufacturerSandvik Coromant

Part #826271190

MFG #6871190

Sandvik Coromant Straight Flute Tap, Series: CoroTap 100, Measurement System: Metric, UNC Thread Standard, M5x0.8 Thread, Semi-Bottoming Chamfer, 5 Flutes, HSS, TiAlN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 13 mm Thread Length, 70 mm Overall Length, 6 mm Shank Diameter, Cast Iron Material Application, No Through Coolant

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Chamfer Type: Semi-Bottoming

Class of Fit: 6HX

Country of Origin: IN

Cutting Direction: Right Hand

Finish/Coating: TiAlN Coated

Manufacturer Name: Sandvik Coromant

Material: HSS

Material Application: Cast Iron

Measurement System: Metric

Number of Flutes: 5

Overall Length: 70 mm

Series: CoroTap 100

Shank Diameter: 6 mm

Thread Length: 13 mm

Thread Size: M5x0.8

Thread Standard: UNC

Through Coolant (Yes/No): No

Straight flute taps mainly used for short chipping materials like cast iron
The flute is mainly used for cutting fluid and, with internal coolant, chip evacuation is also possible
Superior tool life and high productivity are just some of the benefits offered by this exceptional tool
3 coolant holes for optimized strength
Unique grade with higher hardness to reduce wear on coating and substrate
5 flutes to reduce load on cutting edges and to reduce wear

DIN 371

Sandvik Coromant Straight Flute Tap, Series: CoroTap 100, Measurement System: Metric, UNC Thread Standard, M5x0.8 Thread, Semi-Bottoming Chamfer, 5 Flutes, HSS, TiAlN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 13 mm Thread Length, 70 mm Overall Length, 6 mm Shank Diameter, Cast Iron Material Application, No Through Coolant

Manufacturer Name: Sandvik Coromant

Chamfer Type: Semi-Bottoming

Class of Fit: 6HX

Country of Origin: IN

Cutting Direction: Right Hand

Finish/Coating: TiAlN Coated

Manufacturer Name: Sandvik Coromant

Material: HSS

Material Application: Cast Iron

Measurement System: Metric

Number of Flutes: 5

Overall Length: 70 mm

Series: CoroTap 100

Shank Diameter: 6 mm

Thread Length: 13 mm

Thread Size: M5x0.8

Thread Standard: UNC

Through Coolant (Yes/No): No

Straight flute taps mainly used for short chipping materials like cast iron
The flute is mainly used for cutting fluid and, with internal coolant, chip evacuation is also possible
Superior tool life and high productivity are just some of the benefits offered by this exceptional tool
3 coolant holes for optimized strength
Unique grade with higher hardness to reduce wear on coating and substrate
5 flutes to reduce load on cutting edges and to reduce wear

DIN 371

Sandvik Coromant Straight Flute Tap, Series: CoroTap 100, Measurement System: Metric, UNC Thread Standard, M5x0.8 Thread, Semi-Bottoming Chamfer, 5 Flutes, HSS, TiAlN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 13 mm Thread Length, 70 mm Overall Length, 6 mm Shank Diameter, Cast Iron Material Application, No Through Coolant
