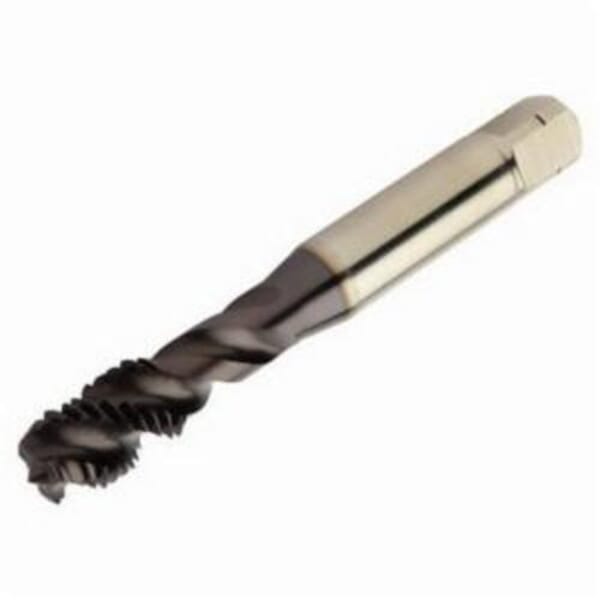

Sandvik Coromant 6182594 CoroTap 300 E050 Spiral Flute Tap, Right Hand Cutting, M6x1 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, PVD Coated, HSS-PM

ManufacturerSandvik Coromant

Part #826210770

MFG #6182594

Sandvik Coromant Spiral Flute Tap, Series: CoroTap 300 E050, Measurement System: Metric, UNC, M6x1, Semi-Bottoming Chamfer, 3 Flutes, HSS-PM, PVD Coated, Class of Fit: 6H, Right Hand Cutting, 10 mm Thread Length, 66 mm Overall Length, 6.3 mm Shank Dia, Right Hand Flute Direction, Steel Material Application, No Through Coolant (Yes/No)

$68.33

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Chamfer Type: Semi-Bottoming

Class of Fit: 6H

Country of Origin: IN

Cutting Direction: Right Hand

Finish/Coating: PVD Coated

Flute Direction: Right Hand

Manufacturer Name: Sandvik Coromant

Material: HSS-PM

Material Application: Steel

Measurement System: Metric

Number of Flutes: 3

Overall Length: 66 mm

Series: CoroTap 300 E050

Shank Diameter: 6.3 mm

Thread Length: 10 mm

Thread Size: M6x1

Thread Standard: UNC

Through Coolant (Yes/No): No

Taps with spiral flute grinding
The spiral flute transports the chips out of the hole
Best option for blind holes
Different helix angle for different applications
Flute used for both cutting fluid and chip evacuation
Different threading depths due to application and geometry
6.3 x 5 mm tap shank adaptive interface machine direction
2.5XD cutting depth
C2-3 chamfer form

ISO 529

For blind hole applications

Manufacturer Name: Sandvik Coromant

Chamfer Type: Semi-Bottoming

Class of Fit: 6H

Country of Origin: IN

Cutting Direction: Right Hand

Finish/Coating: PVD Coated

Flute Direction: Right Hand

Manufacturer Name: Sandvik Coromant

Material: HSS-PM

Material Application: Steel

Measurement System: Metric

Number of Flutes: 3

Overall Length: 66 mm

Series: CoroTap 300 E050

Shank Diameter: 6.3 mm

Thread Length: 10 mm

Thread Size: M6x1

Thread Standard: UNC

Through Coolant (Yes/No): No

Taps with spiral flute grinding
The spiral flute transports the chips out of the hole
Best option for blind holes
Different helix angle for different applications
Flute used for both cutting fluid and chip evacuation
Different threading depths due to application and geometry
6.3 x 5 mm tap shank adaptive interface machine direction
2.5XD cutting depth
C2-3 chamfer form

ISO 529

For blind hole applications
