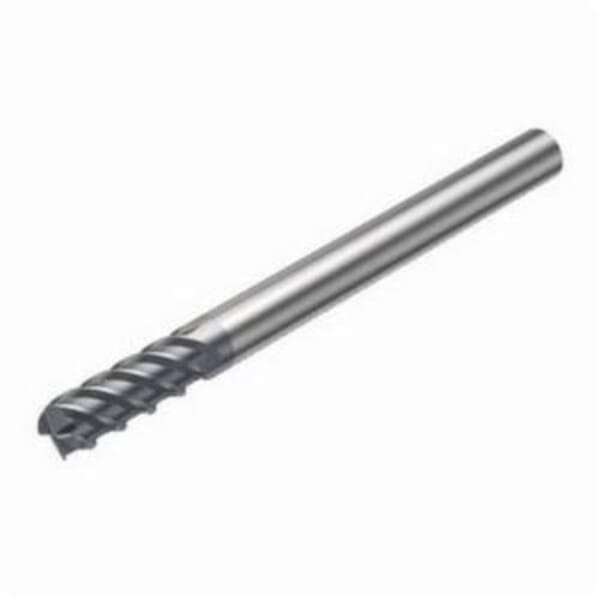

Sandvik Coromant 5742561 CoroMill Plura End Mill, 0.236 in Dia Cutter, 0.59 in Length of Cut, 4 Flutes, 0.236 in Dia Shank, 3.937 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826242561

MFG #5742561

Sandvik Coromant End Mill, Series: CoroMill Plura, 0.236 in Cutter Dia, 3.937 in Overall Length, 0.59 in Length of Cut, 4 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 50 deg Helix Angle, Cylindrical Shank, ANSI Code: R215.H4-06050BAK02P 1620, ISO Code: R215.H4-06050BAK02P 1620, Solid Carbide, PVD Coated

$177.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R215.H4-06050BAK02P 1620

Country of Origin: DE

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 50 deg

ISO Code: R215.H4-06050BAK02P 1620

Length of Cut: 0.59 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3.937 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

1620 manufacturer grade
4 face effective cutt edge
27.1 deg cutting edge
Straight chip breaker
4.8 mm Dia core at face
15 mm L body
Without coolant entry
2 deg minor cutting edge
No coolant exit
2.8 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
-18 deg radial rake
6 deg axial rake
15 mm L usable
64 mm overhang
500 um minimum Rz roughness value on the face
0.5 mm corner radius
5 deg ramping
H9 diameter tolerance class cutting

DIN1835-A|DIN6535-HA

For face milling and high feed roughing machining
