Sandvik Coromant | Sandvik Coromant 5743375 CoroMill Plura Ball Nose End Mill, 0.236 in Dia Cutter, 0.393 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 3.149 in OAL, Uncoated

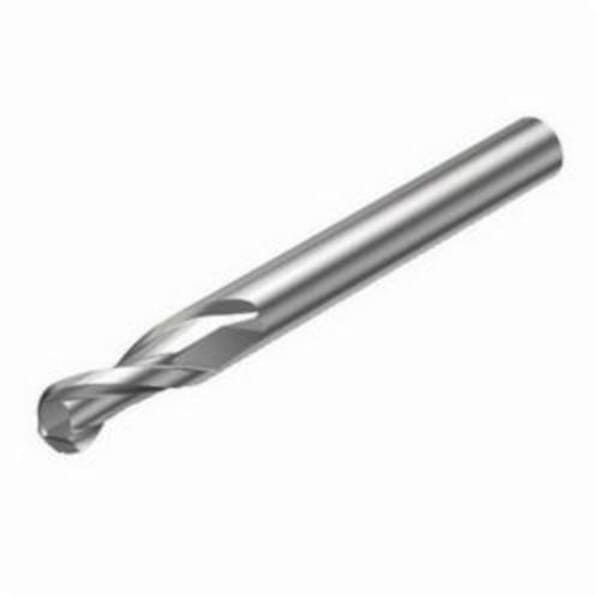

Sandvik Coromant 5743375 CoroMill Plura Ball Nose End Mill, 0.236 in Dia Cutter, 0.393 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 3.149 in OAL, Uncoated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5743375 CoroMill Plura Ball Nose End Mill, 0.236 in Dia Cutter, 0.393 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 3.149 in OAL, Uncoated

ManufacturerSandvik Coromant

Part #826243375

MFG #5743375

Sandvik Coromant End Mill, Ball Nose, Series: CoroMill Plura, 0.236 in Diameter Cutter, 3.149 in Overall Length, 0.393 in Length of Cut, 2 Flutes, 0.236 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.42-06030-AK10A H10F, ISO Code: R216.42-06030-AK10A H10F, Solid Carbide, Uncoated

$139.40

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.42-06030-AK10A H10F

Country of Origin: IT

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: Uncoated

Helix Angle: 30 deg

ISO Code: R216.42-06030-AK10A H10F

Length of Cut: 0.393 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.149 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball Nose

H10F manufacturer grade
Straight chip breaker
2.4 mm Dia core at face
3 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right helix flute hand
13.5 deg radial rake
1.5 deg axial rake
10 mm L usable
2 maximum regrinds
44 mm overhang
0 deg lead
3 mm corner radius
20 deg ramping
80000 r/min
H9 diameter tolerance class cutting
20 life cycle state
Optimized grades for all materials and conditions

DIN1835-A|DIN6535-HA

Pre-Machining and Finishing

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.42-06030-AK10A H10F

Country of Origin: IT

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: Uncoated

Helix Angle: 30 deg

ISO Code: R216.42-06030-AK10A H10F

Length of Cut: 0.393 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.149 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball Nose

H10F manufacturer grade
Straight chip breaker
2.4 mm Dia core at face
3 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right helix flute hand
13.5 deg radial rake
1.5 deg axial rake
10 mm L usable
2 maximum regrinds
44 mm overhang
0 deg lead
3 mm corner radius
20 deg ramping
80000 r/min
H9 diameter tolerance class cutting
20 life cycle state
Optimized grades for all materials and conditions

DIN1835-A|DIN6535-HA

Pre-Machining and Finishing

Catalog

SDS
