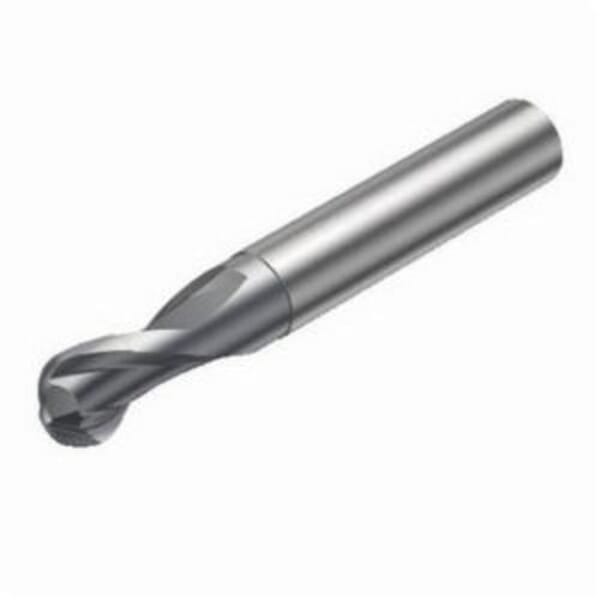

Sandvik Coromant 5743371 CoroMill Plura Ball Nose End Mill, 0.039 in Dia Cutter, 0.039 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826243371

MFG #5743371

Sandvik Coromant End Mill, Ball Nose, Series: DGE433, 0.039 in Cutter Dia, 2.244 in Overall Length, 0.039 in Length of Cut, 2 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.42-01030-AI10G 1610, ISO Code: R216.42-01030-AI10G 1610, Solid Carbide, PVD Coated

$166.60

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.42-01030-AI10G 1610

Country of Origin: IT

Cutter Diameter: 0.039 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.42-01030-AI10G 1610

Length of Cut: 0.039 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 2.244 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball Nose

1610 manufacturer grade
1 mm Dia body
4 - 30 deg body half taper
Straight chip breaker
0.7 mm Dia core at face
17.55 mm L body
1 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right helix flute hand
-5.5 deg radial rake
1.5 deg axial rake
1 mm L usable
21 mm overhang
0 deg lead
0.5 mm corner radius
3 deg ramping
80000 r/min
H7 diameter tolerance class cutting

DIN1835-A|DIN6535-HA

Pre-Machining and Finishing
