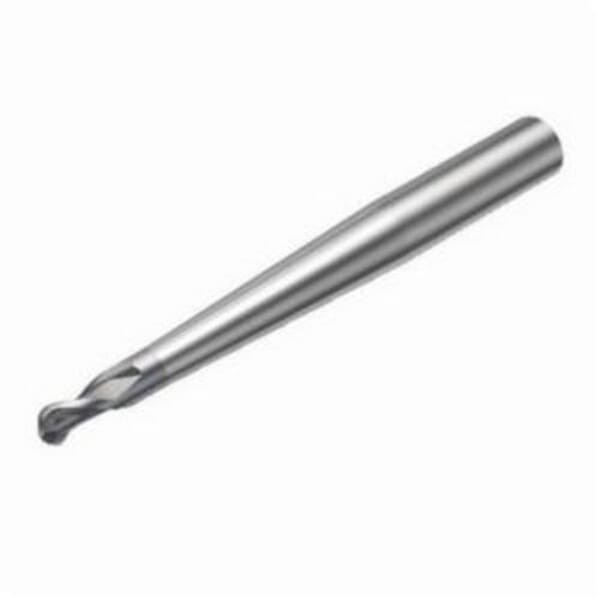

Sandvik Coromant 5743362 CoroMill Plura Ball Nose End Mill, 0.196 in Dia Cutter, 0.196 in Length of Cut, 2 Flutes, 0.314 in Dia Shank, 3.937 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826243362

MFG #5743362

Sandvik Coromant End Mill, Ball Nose, Series: CoroMill Plura, 0.196 in Diameter Cutter, 3.937 in Overall Length, 0.196 in Length of Cut, 2 Flutes, 0.314 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.42-05030-AP05G 1620, ISO Code: R216.42-05030-AP05G 1620, Solid Carbide, PVD Coated

$176.80

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.42-05030-AP05G 1620

Country of Origin: IT

Cutter Diameter: 0.196 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.42-05030-AP05G 1620

Length of Cut: 0.196 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.937 in

Series: CoroMill Plura

Shank Diameter: 0.314 in

Shank Type: Cylindrical

Type: Ball Nose

1620 manufacturer grade
2.5 deg body half taper
Straight chip breaker
3.5 mm Dia core at face
1 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right hand helix flute
-5.5 deg radial rake
1.5 deg axial rake
5 mm L usable
64 mm overhang
0 deg lead
2.5 mm corner radius
3 deg ramping
80000 r/min
H9 diameter tolerance class cutting
20 life cycle state
Optimized grades for all materials and conditions

DIN1835-A|DIN6535-HA

Pre-Machining and Finishing
