Sandvik Coromant | Sandvik Coromant 5739660 CoroMill Plura Ball Nose End Mill, 0.187 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 3 in OAL, PVD Coated

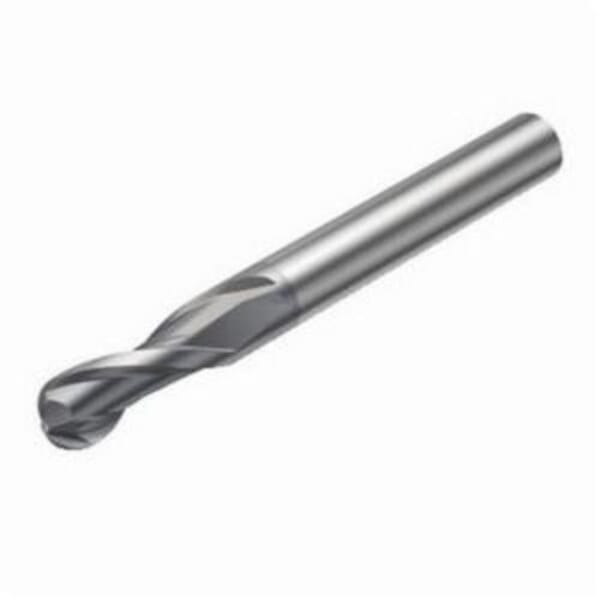

Sandvik Coromant 5739660 CoroMill Plura Ball Nose End Mill, 0.187 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 3 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5739660 CoroMill Plura Ball Nose End Mill, 0.187 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 1/4 in Dia Shank, 3 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826239660

MFG #5739660

Sandvik Coromant End Mill, Ball Nose, Series: CoroMill Plura, 0.187 in Diameter Cutter, 3 in Overall Length, 3/8 in Length of Cut, 2 Flutes, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: RA216.42-1230-AK06G 1610, ISO Code: RA216.42-1230-AK06G 1610, Solid Carbide, PVD Coated

$194.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: RA216.42-1230-AK06G 1610

Country of Origin: IT

Cutter Diameter: 0.187 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: RA216.42-1230-AK06G 1610

Length of Cut: 3/8 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3 in

Series: CoroMill Plura

Shank Diameter: 1/4 in

Shank Type: Cylindrical

Type: Ball Nose

1610 manufacturer grade
Cylindrical shank without clamping machine side adaptive interface
4.76 mm Dia body
30 deg body half taper
Straight chip breaker
2.38 mm Dia core at face
20.4 mm L body
3 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right helix flute hand
-5.5 deg radial rake
1.5 deg axial rake
9.525 mm L usable
40.2 mm overhang
0 deg lead
2.38 mm corner radius
15 deg ramping
80000 r/min

Pre-Machining and Finishing

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: RA216.42-1230-AK06G 1610

Country of Origin: IT

Cutter Diameter: 0.187 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: RA216.42-1230-AK06G 1610

Length of Cut: 3/8 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3 in

Series: CoroMill Plura

Shank Diameter: 1/4 in

Shank Type: Cylindrical

Type: Ball Nose

1610 manufacturer grade
Cylindrical shank without clamping machine side adaptive interface
4.76 mm Dia body
30 deg body half taper
Straight chip breaker
2.38 mm Dia core at face
20.4 mm L body
3 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right helix flute hand
-5.5 deg radial rake
1.5 deg axial rake
9.525 mm L usable
40.2 mm overhang
0 deg lead
2.38 mm corner radius
15 deg ramping
80000 r/min

Pre-Machining and Finishing

Catalog

SDS
