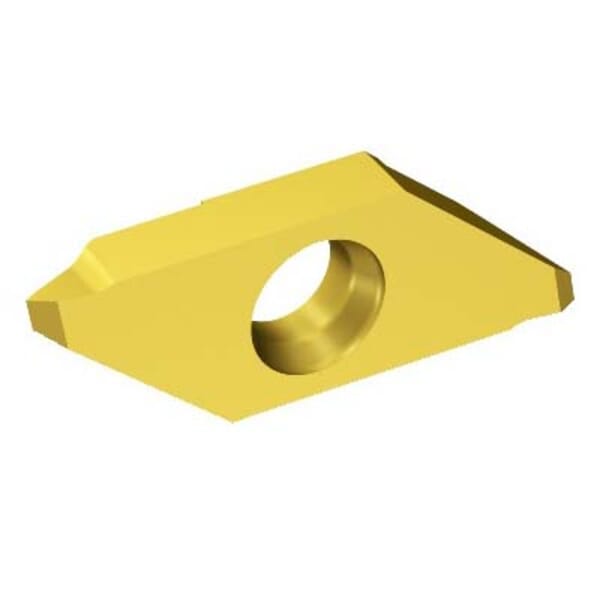

Name: Sandvik Coromant 5735459 CoroCut XS Threading Insert, ANSI Code: MATL 3 60-N 1025, MATL Insert, 12 to 72 TPI, External Thread, 60 deg Partial Profile Thread, 0.014 to 0.079 in Pitch, Left Hand Cutting, Manufacturers Grade: 1025
Brand: Sandvik Coromant
SKU: UNISDK012119
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5735459 CoroCut XS Threading Insert, ANSI Code: MATL 3 60-N 1025, MATL Insert, 12 to 72 TPI, External Thread, 60 deg Partial Profile Thread, 0.014 to 0.079 in Pitch, Left Hand Cutting, Manufacturers Grade: 1025

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5735459 CoroCut XS Threading Insert, ANSI Code: MATL 3 60-N 1025, MATL Insert, 12 to 72 TPI, External Thread, 60 deg Partial Profile Thread, 0.014 to 0.079 in Pitch, Left Hand Cutting, Manufacturers Grade: 1025

ManufacturerSandvik Coromant

Part #826235459

MFG #5735459

Sandvik Coromant Threading Insert, Series: CoroCut XS, MATL Insert, 3 Insert, External Thread, 60 deg Partial Profile Thread Standard, 0.014 to 0.079 in Pitch, 12 to 72 Threads per Inch, 0.118 in Inscribed Circle, 1/8 in Thickness, ANSI Code: MATL 3 60-N 1025, ISO Code: MATL 3 60-N 1025, Positive Rake, 0.002 in Corner Radius, Manufacturers Grade: 1025, Left Hand Cutting Direction, Carbide, TiAlN/TiN, Material Grade: K, M, N, P, S

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: MATL 3 60-N 1025
Corner Radius: 0.002 in
Country of Origin: JP
Cutting Direction: Left Hand
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
Inscribed Circle: 0.118 in
Insert Size: 3
Insert Style: MATL
ISO Code: MATL 3 60-N 1025
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1025
Material: Carbide
Material Grade: K, M, N, P, S
Pitch: 0.014 to 0.079 in
Rake: Positive
Series: CoroCut XS
Thickness: 1/8 in
Thread Standard: 60 deg Partial Profile
Thread Type: External
Threads per Inch: 12 to 72
: Sandvik Coromant Threading Insert, Series: CoroCut XS, MATL Insert, 3 Insert, External Thread, 60 deg Partial Profile Thread Standard, 0.014 to 0.079 in Pitch, 12 to 72 Threads per Inch, 0.118 in Inscribed Circle, 1/8 in Thickness, ANSI Code: MATL 3 60-N 1025, ISO Code: MATL 3 60-N 1025, Positive Rake, 0.002 in Corner Radius, Manufacturers Grade: 1025, Left Hand Cutting Direction, Carbide, TiAlN/TiN, Material Grade: K, M, N, P, S
: Catalog
SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: MATL 3 60-N 1025
Corner Radius: 0.002 in
Country of Origin: JP
Cutting Direction: Left Hand
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
Inscribed Circle: 0.118 in
Insert Size: 3
Insert Style: MATL
ISO Code: MATL 3 60-N 1025
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1025
Material: Carbide
Material Grade: K, M, N, P, S
Pitch: 0.014 to 0.079 in
Rake: Positive
Series: CoroCut XS
Thickness: 1/8 in
Thread Standard: 60 deg Partial Profile
Thread Type: External
Threads per Inch: 12 to 72
: Sandvik Coromant Threading Insert, Series: CoroCut XS, MATL Insert, 3 Insert, External Thread, 60 deg Partial Profile Thread Standard, 0.014 to 0.079 in Pitch, 12 to 72 Threads per Inch, 0.118 in Inscribed Circle, 1/8 in Thickness, ANSI Code: MATL 3 60-N 1025, ISO Code: MATL 3 60-N 1025, Positive Rake, 0.002 in Corner Radius, Manufacturers Grade: 1025, Left Hand Cutting Direction, Carbide, TiAlN/TiN, Material Grade: K, M, N, P, S
: Catalog
SDS
