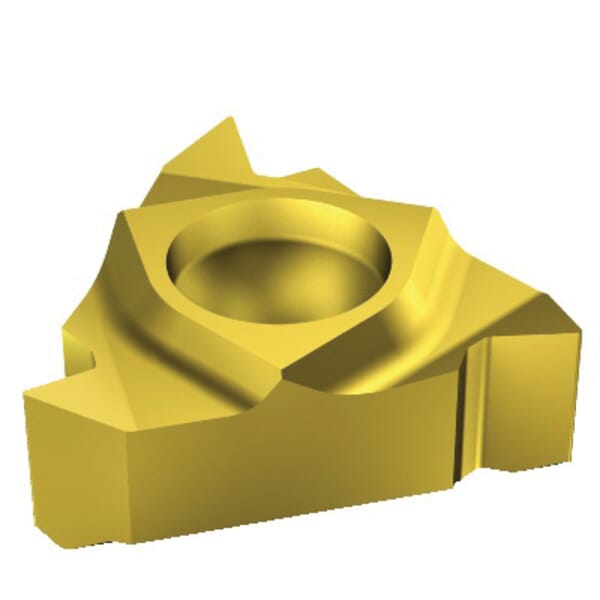

Name: Sandvik Coromant 5735253 T-Max U-Lock Threading Insert, ANSI Code: L166.0L-11VM01-001 1020, L166.0L Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.039 to 0.079 in Pitch, Left Hand Cutting
Brand: Sandvik Coromant
SKU: UNISDK013038
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5735253 T-Max U-Lock Threading Insert, ANSI Code: L166.0L-11VM01-001 1020, L166.0L Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.039 to 0.079 in Pitch, Left Hand Cutting

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5735253 T-Max U-Lock Threading Insert, ANSI Code: L166.0L-11VM01-001 1020, L166.0L Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.039 to 0.079 in Pitch, Left Hand Cutting

ManufacturerSandvik Coromant

Part #826235253

MFG #5735253

Sandvik Coromant Threading Insert, Series: T-Max U-Lock, L166.0L Insert, 11 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.039 to 0.079 in Pitch, 12 to 24 Threads per Inch, 1/4 in Inscribed Circle, 1/8 in Thickness, ANSI Code: L166.0L-11VM01-001 1020, ISO Code: L166.0L-11VM01-001 1020, A Chipbreaker, 0.002 in Corner Radius, 60 deg Included Angle, Manufacturers Grade: 1020, Left Hand Cutting Direction, Carbide, TiN, Material Grade: H/K/M/N/P/S

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: L166.0L-11VM01-001 1020
Chipbreaker: A
Corner Radius: 0.002 in
Country of Origin: SE
Cutting Direction: Left Hand
Finish: PVD-TiN Coated, TiN
Included Angle: 60 deg
Inscribed Circle: 1/4 in
Insert Size: 11
Insert Style: L166.0L
ISO Code: L166.0L-11VM01-001 1020
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1020
Material: Carbide
Material Grade: H, K, M, N, P, S, H/K/M/N/P/S
Pitch: 0.039 to 0.079 in
Series: T-Max U-Lock
Shape: Triangular
Thickness: 1/8 in
Thread Standard: 60 deg Partial Profile
Thread Type: Internal
Threads per Inch: 12 to 24
: Sandvik Coromant Threading Insert, Series: T-Max U-Lock, L166.0L Insert, 11 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.039 to 0.079 in Pitch, 12 to 24 Threads per Inch, 1/4 in Inscribed Circle, 1/8 in Thickness, ANSI Code: L166.0L-11VM01-001 1020, ISO Code: L166.0L-11VM01-001 1020, A Chipbreaker, 0.002 in Corner Radius, 60 deg Included Angle, Manufacturers Grade: 1020, Left Hand Cutting Direction, Carbide, TiN, Material Grade: H/K/M/N/P/S
: Catalog
SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: L166.0L-11VM01-001 1020
Chipbreaker: A
Corner Radius: 0.002 in
Country of Origin: SE
Cutting Direction: Left Hand
Finish: PVD-TiN Coated, TiN
Included Angle: 60 deg
Inscribed Circle: 1/4 in
Insert Size: 11
Insert Style: L166.0L
ISO Code: L166.0L-11VM01-001 1020
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1020
Material: Carbide
Material Grade: H, K, M, N, P, S, H/K/M/N/P/S
Pitch: 0.039 to 0.079 in
Series: T-Max U-Lock
Shape: Triangular
Thickness: 1/8 in
Thread Standard: 60 deg Partial Profile
Thread Type: Internal
Threads per Inch: 12 to 24
: Sandvik Coromant Threading Insert, Series: T-Max U-Lock, L166.0L Insert, 11 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.039 to 0.079 in Pitch, 12 to 24 Threads per Inch, 1/4 in Inscribed Circle, 1/8 in Thickness, ANSI Code: L166.0L-11VM01-001 1020, ISO Code: L166.0L-11VM01-001 1020, A Chipbreaker, 0.002 in Corner Radius, 60 deg Included Angle, Manufacturers Grade: 1020, Left Hand Cutting Direction, Carbide, TiN, Material Grade: H/K/M/N/P/S
: Catalog
SDS
