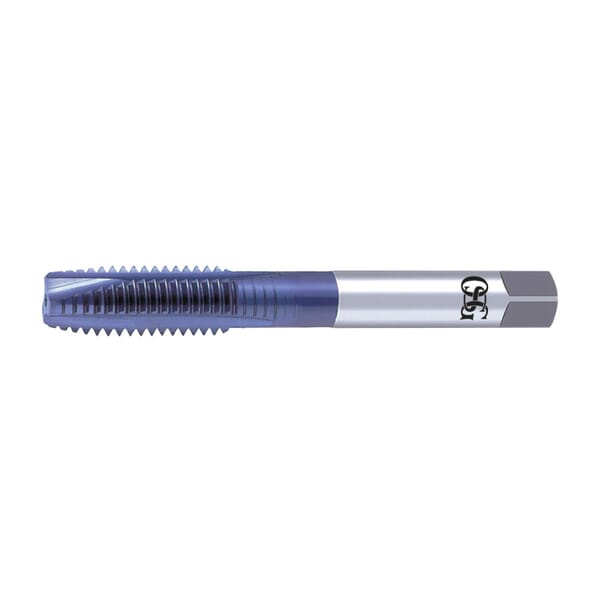

EXO 1105610208 312TI Spiral Point Tap, Right Hand Cutting, #4-40 Thread, H2 Thread Limit, 4.5P-5.5P Plug Chamfer, 3 Flutes, V-Coated, VC-10

ManufacturerEXO

Part #999911056

MFG #1105610208

EXO Spiral Point Tap, Series: 312TI, Measurement System: Imperial, Size #4, UNC, #4-40, 4.5P-5.5P Plug Chamfer, 3 Flutes, VC-10, V-Coated, Class of Fit: JIS 2, Right Hand Cutting, 0.562 in Thread Length, 1.87 in Overall Length, 0.14 in Shank Dia, 1-9/32 in Shank Length, Alloy Steel, Hardened Steel, Inconel Nickel Alloy, Stainless Steel and Titanium Material Application, H2 Thread Limit, Through Coolant (Yes/No): No

$55.03

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: OSG

Chamfer Type: 4.5P-5.5P Plug

Class of Fit: JIS 2

Country of Origin: BR

Cutting Direction: Right Hand

Finish/Coating: V-Coated

Manufacturer Name: OSG

Material: VC-10

Material Application: Alloy Steel, Hardened Steel, Inconel Nickel Alloy, Stainless Steel and Titanium

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 1.87 in

Series: 312TI

Shank Diameter: 0.14 in

Shank Length: 1-9/32 in

Size: #4

Thread Length: 0.562 in

Thread Limit: H2

Thread Size: #4-40

Thread Standard: UNC

Through Coolant (Yes/No): No

Premium powdered metal VC-10 substrate - increased hardness for longer life
Spiral point - for through hole applications
OSG V-coating - increased hardness, lubricity and wear resistance
DIN overall length - provides greater reach capability

REACH EU Regulation Article 33 No. 1907/2006|RoHS Directive EU 2015/863|WEEE 2002/96/EC|PROP65: When grinding or regrinding industrial cutting tools, residual grinding dust may occur. This dust may contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

EXOTAP VC-10 Ti is the premium solution for titanium alloys and heat-resistant super alloys.
