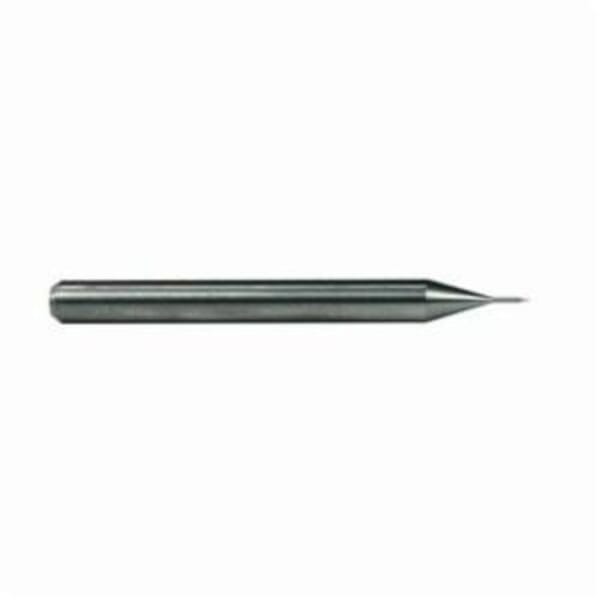

M.A. Ford Twister GP 30200390 302 Circuit Board Drill Bit, #102 Drill - Wire, 0.0039 in Drill - Decimal Inch, 1/8 in Shank, 2 Flutes

ManufacturerM.A. Ford

Part #154800390

MFG #30200390

UPC #697604320018

M.A. Ford Twister GP Circuit Board Drill Bit, Series: 302, #102 Drill - Wire, 0.0039 in Drill - Decimal Inch, 1-1/2 in Overall Length, 0.065 in Cutting Depth, 2 Flutes, 0.065 in Flute Length, 1/8 in Shank, 130 deg Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, Uncoated, Applicable Materials: Steel, Stainless Steel, Hardened Steel, Cast Iron, Special Alloy and Non-Ferrous

$75.84

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: M.A. Ford

Applicable Materials: Steel, Stainless Steel, Hardened Steel, Cast Iron, Special Alloy and Non-Ferrous

Country of Origin: US

Cutting Depth: 0.065 in

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.0039 in

Drill Size - Wire: #102

Finish: Uncoated

Flute Length: 0.065 in

Manufacturer Name: M.A. Ford

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1-1/2 in

Point Angle: 130 deg

Series: 302

Shank Size: 1/8 in

High feed rates with excellent chip evacuation
Accurate hole size in a wide range of materials
Pre-drilling and follow-up operations can often be eliminated because of the quality and performance of M.A. Ford drills
Minimal wander produces maximum precision, productivity and drill life
Web-thinned drill designs are available for reduced power requirements, lower temperatures and extended drill life
Three flute geometries are available to reduce chip load/tooth and increase tool life in highly alloyed steels
35 deg helix
+0.0/-0.0002 in tolerance D2
+/-0.005 in tolerance L1

General Purpose

ISO 9001:2008
