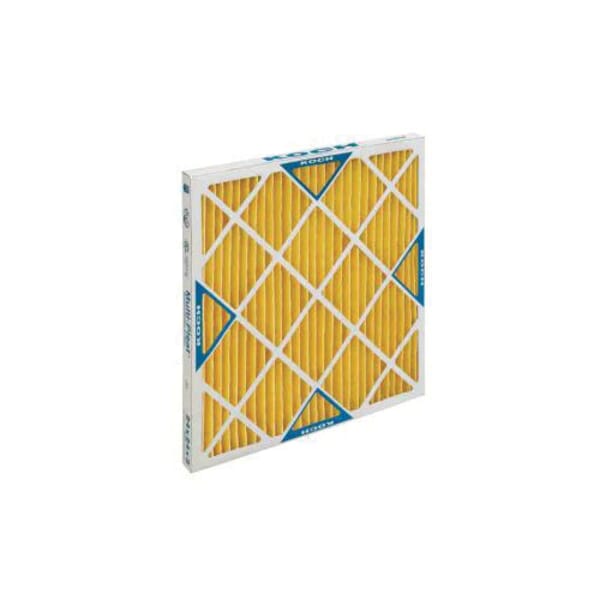

Koch Filter 102-092-005 Multi-Pleat XL11 SC Semi-Standard Extended Surface Pleated Panel Filter, 16 in H x 16 in W x 2 in D, 11 MERV, 150 deg F, Domestic
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsKoch Filter 102-092-005 Multi-Pleat XL11 SC Semi-Standard Extended Surface Pleated Panel Filter, 16 in H x 16 in W x 2 in D, 11 MERV, 150 deg F, Domestic
ManufacturerKoch Filter
Part #999992005
MFG #102-092-005
Koch Filter Extended Surface Pleated Panel Filter, Semi-Standard, Series: Multi-Pleat XL11 SC, 16 in Width, 2 in D, 16 in Height, MERV: 11, 150 deg F, Paperboard Frame, 60 to 65% Efficiency, 0.14 to 0.51 in WG Initial Resistance, 1 in WG Final Resistance, 100% Synthetic Media, Yellow, Domestic
$14.89
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Koch FilterColor:Â YellowCountry of Origin:Â USDepth:Â 2 inDomestic/Import:Â DomesticEfficiency:Â 60 to 65%Final Resistance:Â 1 in WGFrame Material:Â PaperboardHeight:Â 16 inInitial Resistance:Â 0.14 to 0.51 in WGManufacturer Name:Â Koch FilterMedia Material:Â 100% SyntheticMERV:Â 11Series:Â Multi-Pleat XL11 SCTemperature Rating:Â 150 deg FType:Â Semi-StandardWidth:Â 16 in
- Hospitals, Laboratories, Pharmaceutical Plants and Commercial Office Buildings
- Dual-layered filter media
- Low pressure drop
- Superior efficiency
- High dust holding capacity
- Multi-Pleat XL11 is produced with a highly specialized, dual layered 100% synthetic media, developed by Koch filter Corporation specifically for use in extended surface air filters
- New media is composed of an upstream electrostatically enhanced layer and a downstream mechanical layer
- Dual-layered construction of Multi-Pleat series XL11 overcomes a common problem found in single-layered electrostatically charged filters
- In filters produced with single-layer media, the effectiveness of the electrostatically charged media decreases over time as the filter becomes dirty and the charge dissipates
- Unique dual-layered media design of the Multi-Pleat XL11 greatly reduces this problem
- Effectiveness of the electrostatically enhanced E-layer decreases, the downstream mechanical M-layer takes over
- M-layer steps up to provide better continuing overall performance and excellent dust holding capacity
- Standard capacity XL11-SC filters provide a combination of efficiency, economy, and excellent overall performance
- Standard capacity XL11-SC filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules
- ASHRAE 52.1/52.2|NAFA Standard|USGBC Member|UL 900/cUL Listed|Energy Star Certified
- Manufacturer Name:Â Koch FilterColor:Â YellowCountry of Origin:Â USDepth:Â 2 inDomestic/Import:Â DomesticEfficiency:Â 60 to 65%Final Resistance:Â 1 in WGFrame Material:Â PaperboardHeight:Â 16 inInitial Resistance:Â 0.14 to 0.51 in WGManufacturer Name:Â Koch FilterMedia Material:Â 100% SyntheticMERV:Â 11Series:Â Multi-Pleat XL11 SCTemperature Rating:Â 150 deg FType:Â Semi-StandardWidth:Â 16 in
- Hospitals, Laboratories, Pharmaceutical Plants and Commercial Office Buildings
- Dual-layered filter media
- Low pressure drop
- Superior efficiency
- High dust holding capacity
- Multi-Pleat XL11 is produced with a highly specialized, dual layered 100% synthetic media, developed by Koch filter Corporation specifically for use in extended surface air filters
- New media is composed of an upstream electrostatically enhanced layer and a downstream mechanical layer
- Dual-layered construction of Multi-Pleat series XL11 overcomes a common problem found in single-layered electrostatically charged filters
- In filters produced with single-layer media, the effectiveness of the electrostatically charged media decreases over time as the filter becomes dirty and the charge dissipates
- Unique dual-layered media design of the Multi-Pleat XL11 greatly reduces this problem
- Effectiveness of the electrostatically enhanced E-layer decreases, the downstream mechanical M-layer takes over
- M-layer steps up to provide better continuing overall performance and excellent dust holding capacity
- Standard capacity XL11-SC filters provide a combination of efficiency, economy, and excellent overall performance
- Standard capacity XL11-SC filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules
- ASHRAE 52.1/52.2|NAFA Standard|USGBC Member|UL 900/cUL Listed|Energy Star Certified
