Hannibal Carbide Tool | Hannibal 66048 660F Material Specific Taper Shank Drill Bit, 3/4 in Drill - Fraction, 0.75 in Drill - Decimal Inch, #2 Morse Taper Shank Taper, Hardened Tool Steel

Hannibal 66048 660F Material Specific Taper Shank Drill Bit, 3/4 in Drill - Fraction, 0.75 in Drill - Decimal Inch, #2 Morse Taper Shank Taper, Hardened Tool Steel

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Hannibal Carbide Tool

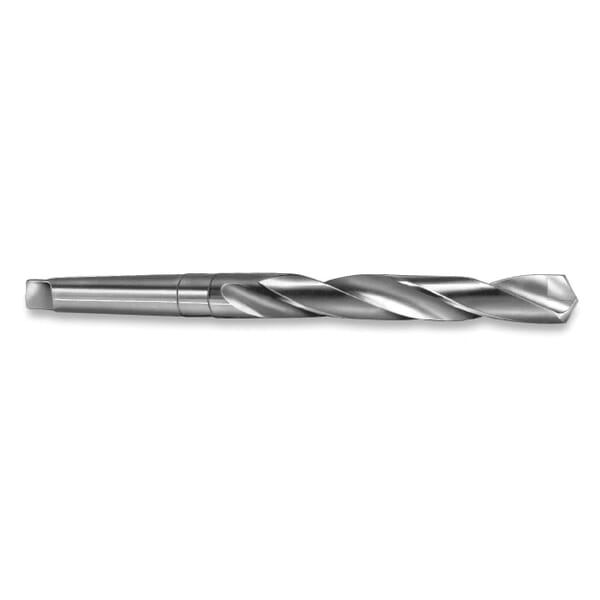

Hannibal 66048 660F Material Specific Taper Shank Drill Bit, 3/4 in Drill - Fraction, 0.75 in Drill - Decimal Inch, #2 Morse Taper Shank Taper, Hardened Tool Steel

ManufacturerHannibal

Part #170966048

MFG #66048

Hannibal Taper Shank Drill Bit, Material Specific, Series: 660F, Imperial, 3/4 in Drill - Fraction, 0.75 in Drill - Decimal Inch, 9-3/4 in Overall Length, 5-7/8 in Cutting Depth, Twist Flute, 5-7/8 in Flute Length, #2 Morse Taper Shank Taper Designation, 118 deg Point, Standard Point, Carbide Cutting Edge, Hardened Tool Steel, Applicable Materials: Cast Iron and Non-Ferrous Metals

$103.83

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Hannibal Carbide Tool

Cutting Depth: 5-7/8 in

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.75 in

Drill Size - Fraction: 3/4 in

Flute Length: 5-7/8 in

Flute Type: Twist

Material: Hardened Tool Steel

Overall Length: 9-3/4 in

Point Angle: 118 deg

Point Type: Standard

Series: 660F

Shank Taper Designation: #2 Morse Taper

Type: Material Specific

ASME/ANSI B5.10|NAS 907|ISO Standard|USCTI Standard

Drills are end cutting tools used to produce holes when rapid removal of material is desired
Twist drills are generally effective in holes up to 3 tool diameters deep - peck cycles should be used for deeper holes to achieve better chip evacuation
Heavy duty construction
Carbide tip high temperature brazed to hardened tool steel body
Smooth flutes for effective chip flow
Precision ground to insure concentricity of tip and body
