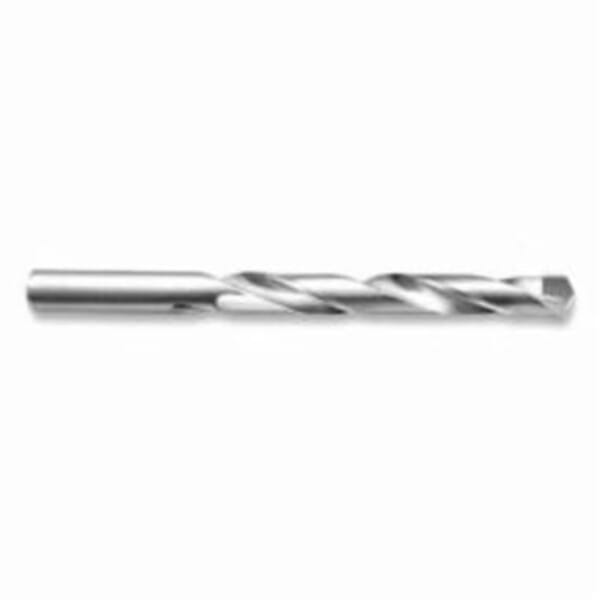

Hannibal Carbide Tool | Hannibal 600030 600M Material Specific Jobber Length Drill Bit, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, 118 deg Point, Tool Steel

Hannibal 600030 600M Material Specific Jobber Length Drill Bit, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, 118 deg Point, Tool Steel

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Hannibal Carbide Tool

Hannibal 600030 600M Material Specific Jobber Length Drill Bit, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, 118 deg Point, Tool Steel

ManufacturerHannibal

Part #170960003

MFG #600030

Hannibal Jobber Length Drill Bit, Material Specific, Series: 600M, Metric/Imperial, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, 70 mm Overall Length, 41 mm Cutting Depth, Spiral Flute, 41 mm Flute Length, Flat/Tanged Shank, 118 deg Point, Standard Point, Carbide Cutting Edge, No Through Coolant, Tool Steel, Applicable Materials: Cast Iron and Non-Ferrous Materials

$24.16

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Hannibal Carbide Tool

Cutting Depth: 41 mm

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.1181 in

Drill Size - Metric: 3 mm

Flute Length: 41 mm

Flute Type: Spiral

Material: Tool Steel

Overall Length: 70 mm

Point Angle: 118 deg

Point Type: Standard

Series: 600M

Shank Type: Flat/Tanged

Through Coolant (Yes/No): No

Type: Material Specific

Drills are end cutting tools used to produce holes when rapid removal of material is desired
Twist drills are generally effective in holes up to 3 tool diameters deep, peck cycles should be used for deeper holes to achieve better chip evacuation
Carbide tip high temperature brazed to hardened tool steel body
Smooth flutes for effective chip flow
Precision ground to insure concentricity of tip and body
The most popular carbide tipped drill will perform satisfactorily under a variety of conditions

ASME/ANSI B94.11M|NAS 907|USCTI Standard
