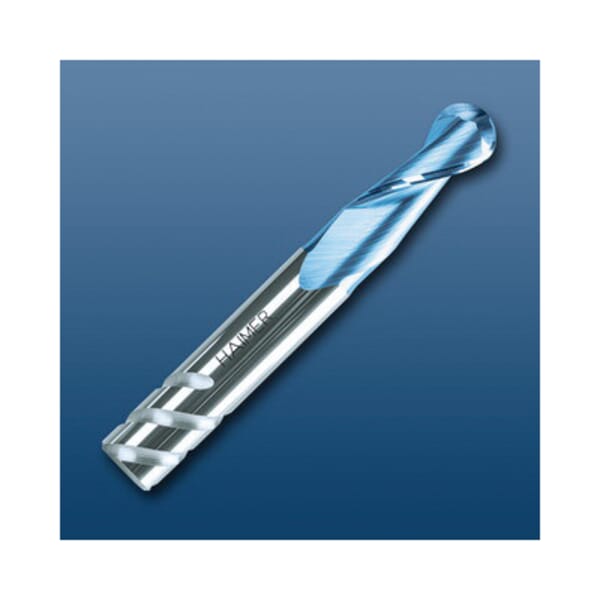

Haimer | Haimer V1002NNL0800RAA Ball Nose Power End Mill, 8 mm Dia Cutter, 19 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 64 mm OAL

Haimer V1002NNL0800RAA Ball Nose Power End Mill, 8 mm Dia Cutter, 19 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 64 mm OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer V1002NNL0800RAA Ball Nose Power End Mill, 8 mm Dia Cutter, 19 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 64 mm OAL

ManufacturerHaimer

Part #129504162

MFG #V1002NNL0800RAA

Haimer Power End Mill, Ball Nose, Series: V1002NN, 8 mm Diameter Cutter, 64 mm Overall Length, 19 mm Length of Cut, 2 Flutes, 8 mm Shank Diameter, 32/34 deg Helix Angle, Safe-Lock Shank, 36.5 mm Shank Length, Solid Carbide

$91.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Cutter Diameter: 8 mm

Helix Angle: 32/34 deg

Length of Cut: 19 mm

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 64 mm

Series: V1002NN

Shank Diameter: 8 mm

Shank Length: 36.5 mm

Shank Type: Safe-Lock

Type: Ball Nose

Patented Safe-Lock tool shank eliminates tool pull out
H5 shank tolerance
Less than 1 gmm fine balanced
Less than 3 um runout
Variable helix for roughing and finishing
+/-0.05 mm OAL tolerance
Polished gullets
Neck for higher cutting depth
For almost all materials

For feed direction, 45 deg ramping, slotting, side milling, drilling, 3D milling, roughing and finishing
