Chicago-Latrobe 49218 159 Heavy Duty Screw Machine Drill, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, HSS, Black Steam Oxide

ManufacturerChicago-Latrobe

Part #234749218

MFG #49218

UPC #662355492185

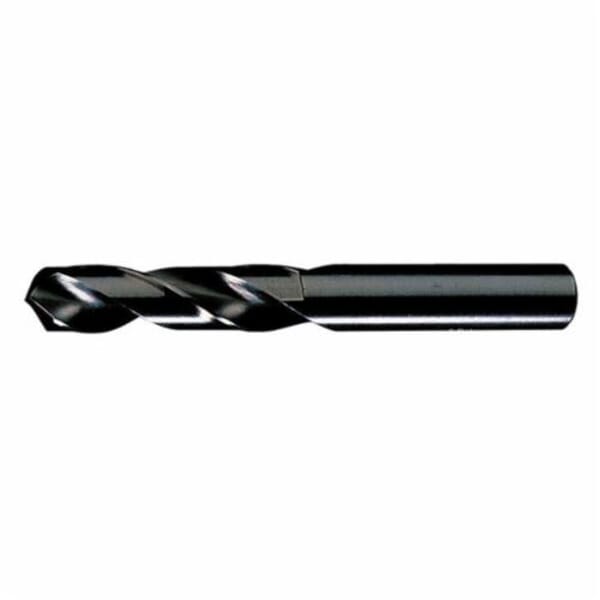

Chicago-Latrobe Screw Machine Drill, Heavy Duty, Series: 159, Imperial, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 2-11/16 in Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 1-1/2 in Flute Length, 9/32 in Dia x 1-3/16 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Steam Oxide, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel

$4.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Greenfield Industries

Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel

Country of Origin: US

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.2812 in

Drill Size - Fraction: 9/32 in

Finish: Black Steam Oxide

Flute Length: 1-1/2 in

Flute Type: Right Spiral

Manufacturer Name: Greenfield Industries

Material: HSS

Number of Flutes: 2

Overall Length: 2-11/16 in

Point Angle: 135 deg

Point Type: Split

Series: 159

Shank Size: 9/32 in Dia x 1-3/16 in L

Shank Type: Straight

Type: Heavy Duty

Heavy duty geometry for drilling tougher materials by hand or machine
Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
135 deg P3 split point is self-centering for reduced thrust and easier penetration

DIN 1897

Manufacturer Name: Greenfield Industries

Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel

Country of Origin: US

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.2812 in

Drill Size - Fraction: 9/32 in

Finish: Black Steam Oxide

Flute Length: 1-1/2 in

Flute Type: Right Spiral

Manufacturer Name: Greenfield Industries

Material: HSS

Number of Flutes: 2

Overall Length: 2-11/16 in

Point Angle: 135 deg

Point Type: Split

Series: 159

Shank Size: 9/32 in Dia x 1-3/16 in L

Shank Type: Straight

Type: Heavy Duty

Heavy duty geometry for drilling tougher materials by hand or machine
Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
135 deg P3 split point is self-centering for reduced thrust and easier penetration

DIN 1897
