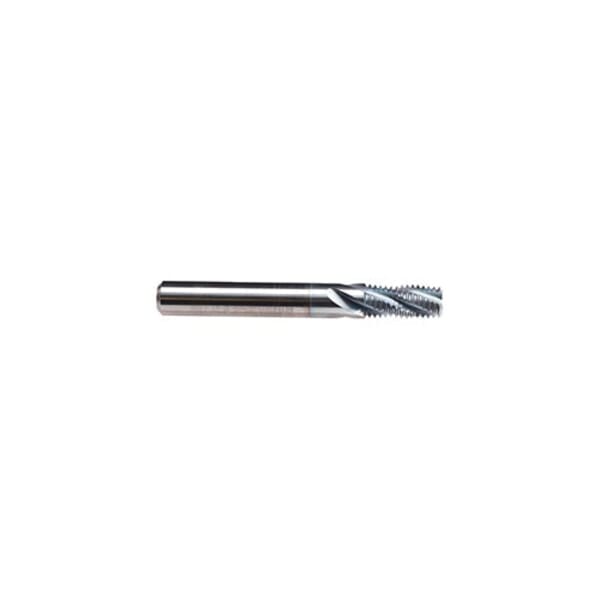

Emuge GF162316.9579 SHUR-THREAD GF162316 GF Style Long Spiral Flute Thread Mill With Axial Through Coolant, 1/2-24 UN Thread, 70 mm OAL, 4 Flutes, 10 mm Dia Shank

ManufacturerEmuge

Part #826505465

MFG #GF162316.9579

Emuge Spiral Flute Thread Mill, GF Style Long, Series: SHUR-THREAD GF162316, 1/2-24 Thread, UN Thread, 9.9 mm Diameter Cutting, 16.3 mm Length of Cut, 70 mm Overall Length, 4 Flutes, Weldon Flat Shank, 10 mm Shank Diameter, 1.575 in Shank Length, Carbide, TiCN Coated

$457.08

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 9.9 mm

Finish: TiCN Coated

Length of Cut: 16.3 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 70 mm

Series: SHUR-THREAD GF162316

Shank Diameter: 10 mm

Shank Length: 1.575 in

Shank Type: Weldon Flat

Thread Size: 1/2-24

Thread Type: UN

Type: GF Style Long

GF long length thread mill designed for UNC and UNF threads
One tool for different thread sizes with standard thread profile (but with one pitch only)
30 deg right hand spiral geometry for blind and through hole applications
Axial coolant fed construction for effective chip evacuation
Extended length design
TiCN coated for abrasion resistance and maximum tool life
To avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 of the thread produced (3/4 for fine pitch threads)

Emuge Spiral Flute Thread Mill, GF Style Long, Series: SHUR-THREAD GF162316, 1/2-24 Thread, UN Thread, 9.9 mm Diameter Cutting, 16.3 mm Length of Cut, 70 mm Overall Length, 4 Flutes, Weldon Flat Shank, 10 mm Shank Diameter, 1.575 in Shank Length, Carbide, TiCN Coated

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
