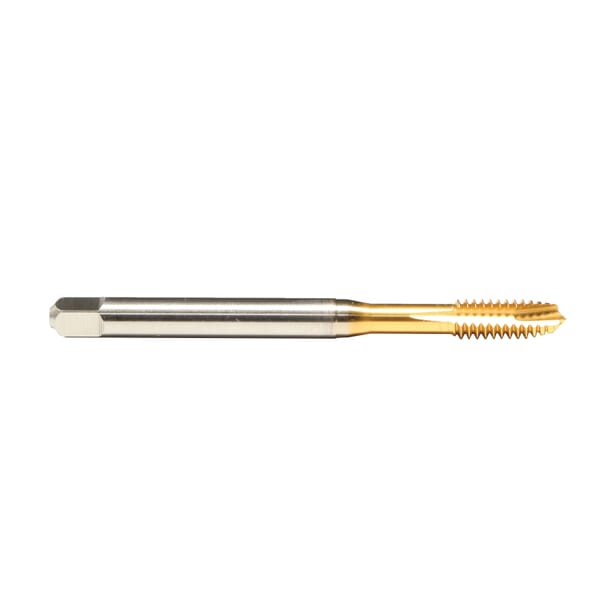

Emuge-Franken | Emuge AU201400.0277 Rekord B-STEEL AU201400 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, M10x1.25 Thread, Plug Chamfer, 3 Flutes, TiN Coated, HSS-E

Emuge AU201400.0277 Rekord B-STEEL AU201400 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, M10x1.25 Thread, Plug Chamfer, 3 Flutes, TiN Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Emuge-Franken

Emuge AU201400.0277 Rekord B-STEEL AU201400 Form B Reinforced Shank Spiral Point Tap, Right Hand Cutting, M10x1.25 Thread, Plug Chamfer, 3 Flutes, TiN Coated, HSS-E

ManufacturerEmuge

Part #826500085

MFG #AU201400.0277

Emuge Spiral Point Tap, Form B Reinforced Shank, Series: Rekord B-STEEL AU201400, Measurement System: Metric, Fine Thread Standard, M10x1.25 Thread, Plug Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 6H, Right Hand Cutting Direction, 0.709 in Thread Length, 2.94 in Overall Length, 0.381 in Shank Diameter, Steel, Stainless Steel, Cast Iron and Copper Alloys Material Application, No Through Coolant

$78.51

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron and Copper Alloys

Measurement System: Metric

Number of Flutes: 3

Overall Length: 2.94 in

Series: Rekord B-STEEL AU201400

Shank Diameter: 0.381 in

Thread Length: 0.709 in

Thread Size: M10x1.25

Thread Standard: Fine

Through Coolant (Yes/No): No

Type: Form B Reinforced Shank

Spiral point creates tight curled chips that are pushed ahead of the tap
TiN coated for additional tool life
Taps with ANSI/ANSI standard overall length dimensions are shorter than taps made to DIN standards

ANSI/ANSI Specified|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

For through hole applications in long chipping materials

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron and Copper Alloys

Measurement System: Metric

Number of Flutes: 3

Overall Length: 2.94 in

Series: Rekord B-STEEL AU201400

Shank Diameter: 0.381 in

Thread Length: 0.709 in

Thread Size: M10x1.25

Thread Standard: Fine

Through Coolant (Yes/No): No

Type: Form B Reinforced Shank

Spiral point creates tight curled chips that are pushed ahead of the tap
TiN coated for additional tool life
Taps with ANSI/ANSI standard overall length dimensions are shorter than taps made to DIN standards

ANSI/ANSI Specified|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

For through hole applications in long chipping materials
