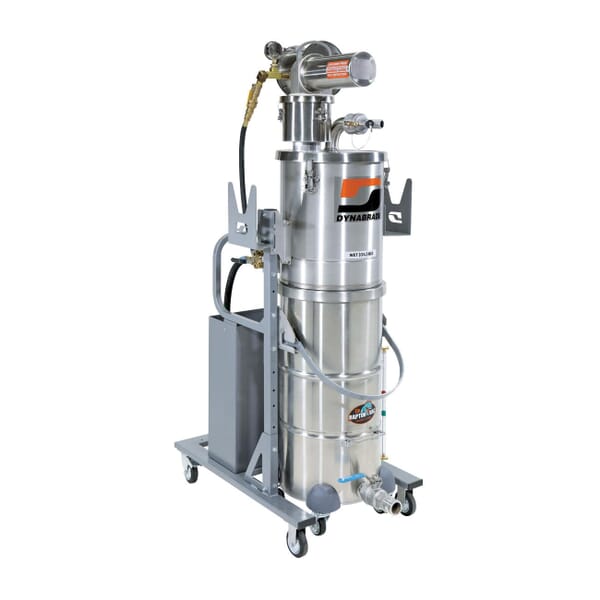

Dynabrade 61463 Raptor Vac Air Powered Portable Vacuum System, 7.9 gal Tank, 110 cfm Air Flow
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsDynabrade 61463 Raptor Vac Air Powered Portable Vacuum System, 7.9 gal Tank, 110 cfm Air Flow
ManufacturerDynabrade
Part #134061463
MFG #61463
UPC #616026614635
Dynabrade Vacuum System, Air Powered Portable, Series: Raptor Vac, 7.9 gal Tank, 90 psi Static Pressure, 45 scfm, 110 cfm, 75 dB, 30 in L x 46 in W x 70 in H
$16,089.70
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â DynabradeAir Flow Rate:Â 110 cfmCountry of Origin:Â CADimensions:Â 30 in L x 46 in W x 70 in HFlow Rate:Â 45 scfmManufacturer Name:Â DynabradeSeries:Â Raptor VacSound Level:Â 75 dBStatic Pressure:Â 90 psiTank Capacity:Â 7.9 galType:Â Air Powered Portable
Two 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y-Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, 3/4 in x 25 ft (19 mm x 7.6 m) Conductive Air Line Supply
- Pneumatic portable vacuum with division 1 Immersion separator for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys
- Collects maximum of 22 lbs (10 kg) of dust
- Legally certified as explosion-proof and dust ignition-proof
- Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil
- Renders hazardous dust inert
- Recovery capacity of 1.3 gal (5 liters) of dust into 7.9 gal (30 liters) of neutralizing liquid
- Includes HEPA H14 filter with 99.995% efficiency on 0.3 micron
- Filter is located downstream of the motor
- Stainless steel recovery tank (SAE 304)
- Easy one-click detaching and connecting of tank
- Unit is static-dissipating (kit included) and conductive
- Aerosol leak tested for quality assurance
- Equipped with easy-glide cart and tool basket
- Dynabrade recommends the use of Mineral Oil with viscosity of 10.5 cost
- 96608 conductive cleaning kit available separately
- Vacuum for use in group A - Atmospheres, containing acetylene, group B - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air, group C - Atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air, group D - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode, group E - Atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys, group F - atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust, group G - Atmospheres, containing wood and plastic dusts
- Designed for use in - Class I, Division I, Groups A, B, C, D T6, Class II, Division I, Groups E, F and G, Hazardous Locations as defined in the National Electric Code (NFPA 70)|European Certifications - ATEX, Third Party Certified|CE EX II 2 GD c IIC T6 (85 deg C)
- Two 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y-Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, 3/4 in x 25 ft (19 mm x 7.6 m) Conductive Air Line Supply
- Manufacturer Name:Â DynabradeAir Flow Rate:Â 110 cfmCountry of Origin:Â CADimensions:Â 30 in L x 46 in W x 70 in HFlow Rate:Â 45 scfmManufacturer Name:Â DynabradeSeries:Â Raptor VacSound Level:Â 75 dBStatic Pressure:Â 90 psiTank Capacity:Â 7.9 galType:Â Air Powered Portable
Two 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y-Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, 3/4 in x 25 ft (19 mm x 7.6 m) Conductive Air Line Supply
- Pneumatic portable vacuum with division 1 Immersion separator for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys
- Collects maximum of 22 lbs (10 kg) of dust
- Legally certified as explosion-proof and dust ignition-proof
- Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil
- Renders hazardous dust inert
- Recovery capacity of 1.3 gal (5 liters) of dust into 7.9 gal (30 liters) of neutralizing liquid
- Includes HEPA H14 filter with 99.995% efficiency on 0.3 micron
- Filter is located downstream of the motor
- Stainless steel recovery tank (SAE 304)
- Easy one-click detaching and connecting of tank
- Unit is static-dissipating (kit included) and conductive
- Aerosol leak tested for quality assurance
- Equipped with easy-glide cart and tool basket
- Dynabrade recommends the use of Mineral Oil with viscosity of 10.5 cost
- 96608 conductive cleaning kit available separately
- Vacuum for use in group A - Atmospheres, containing acetylene, group B - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air, group C - Atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air, group D - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode, group E - Atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys, group F - atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust, group G - Atmospheres, containing wood and plastic dusts
- Designed for use in - Class I, Division I, Groups A, B, C, D T6, Class II, Division I, Groups E, F and G, Hazardous Locations as defined in the National Electric Code (NFPA 70)|European Certifications - ATEX, Third Party Certified|CE EX II 2 GD c IIC T6 (85 deg C)
- Two 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y-Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, 3/4 in x 25 ft (19 mm x 7.6 m) Conductive Air Line Supply
